Rear Seat Back Cushion Frame Replacement (60%)

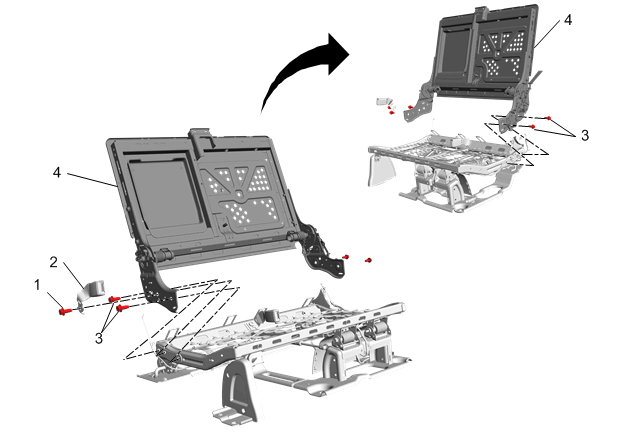

Fig 1: Rear Seat Back Cushion Frame (60%)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Seat Removal and Installation (60/40 Bench) Rear Seat Cushion Cover and Pad Replacement (60/40 Bench) Rear Seat Back Cushion Cover and Pad Replacement (60%)
1	Rear Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten 55 N.m (41 lb ft)
2	Rear Seat Belt Buckle
3	Rear Seat Back Cushion Frame Fastener [4x] CAUTION: Refer to Fastener Caution . Tighten 55 N.m (41 lb ft)
4	Rear Seat Back Cushion Frame Procedure Disconnect the recliner cables from the recliners. Disconnect all electrical connectors. Transfer components as necessary.
