Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)

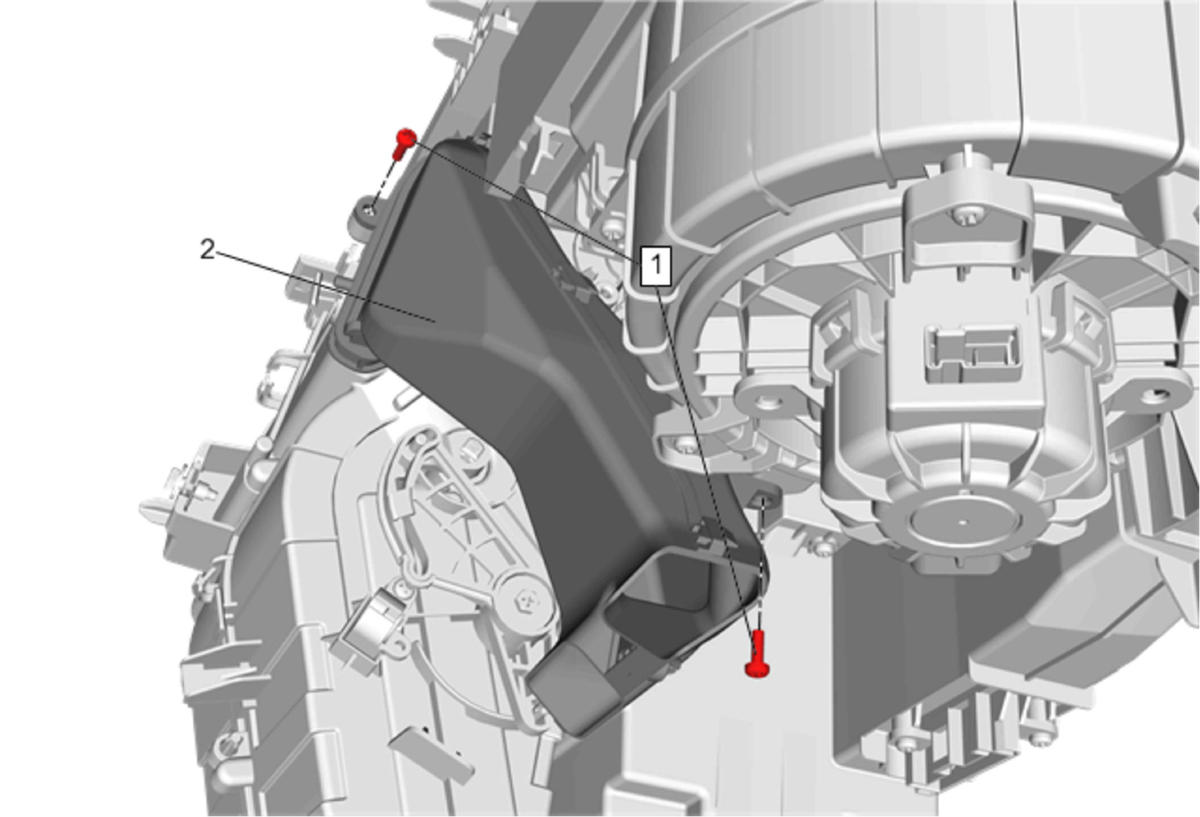

GM4051937Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement .
1 Right Floor Air Outlet Duct Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.2 N.m (11 lb in)
2 Floor Air Outlet Duct - Right
