Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive)

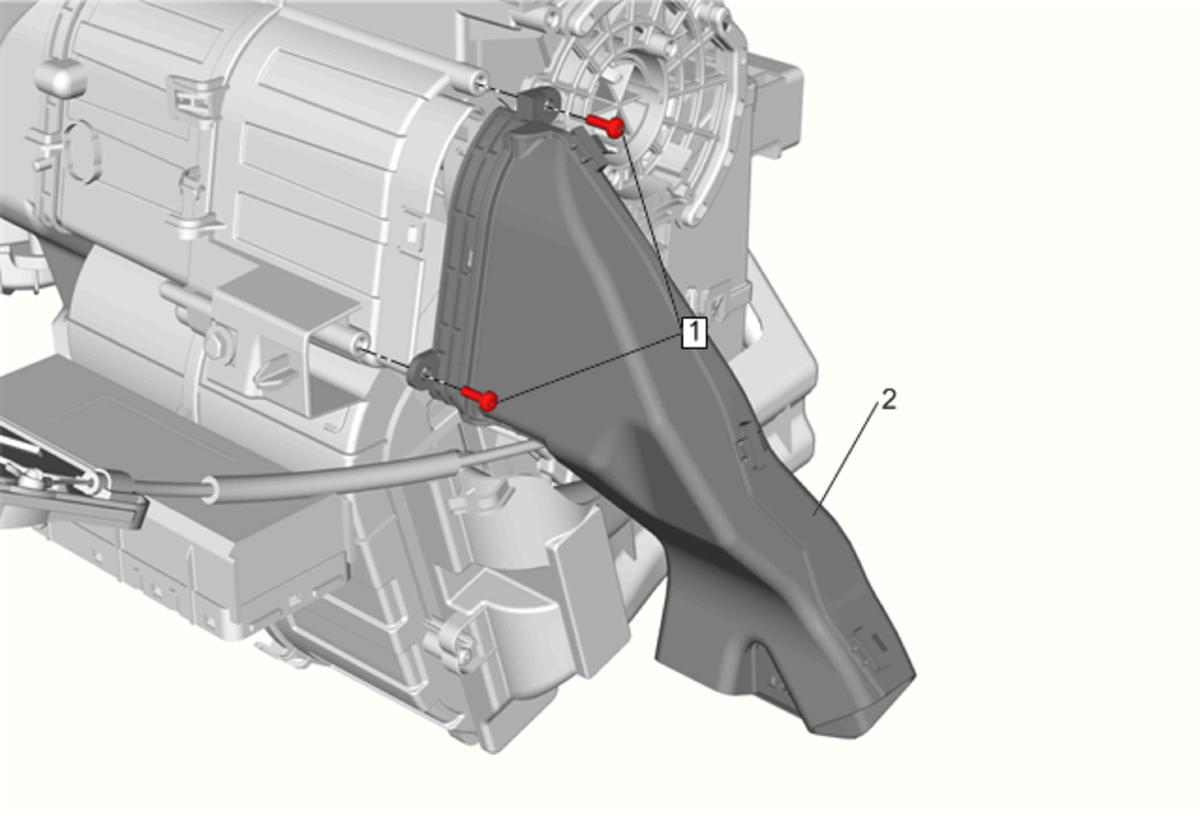

GM4051939Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1 Right Floor Air Outlet Duct Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.2 N.m (11 lb in)
2 Floor Air Outlet Duct - Right
