Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Remove the battery tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater) .
- Remove the brake pressure modulator valve bracket. Refer to Brake Pressure Modulator Valve Bracket Replacement .
- Remove the clutch master cylinder reservoir hose from the clutch master cylinder. Refer to Clutch Master Cylinder Reservoir Hose Replacement (Left Hand Drive) Clutch Master Cylinder Reservoir Hose Replacement (Right Hand Drive) .
Remove the clutch actuator cylinder front pipe (2) from the retainers (1).
Remove the retaining clip (1).
- Disconnect the clutch actuator cylinder front pipe (2) from the clutch master cylinder.
Remove the 2 clutch master cylinder mount nuts (1).
- Remove the clutch pedal return spring. Refer to Clutch Pedal Return Spring Replacement (Left Hand Drive) Clutch Pedal Return Spring Replacement (Right Hand Drive) .
- Remove the clutch pedal position sensor. Refer to Clutch Pedal Position Sensor Replacement .

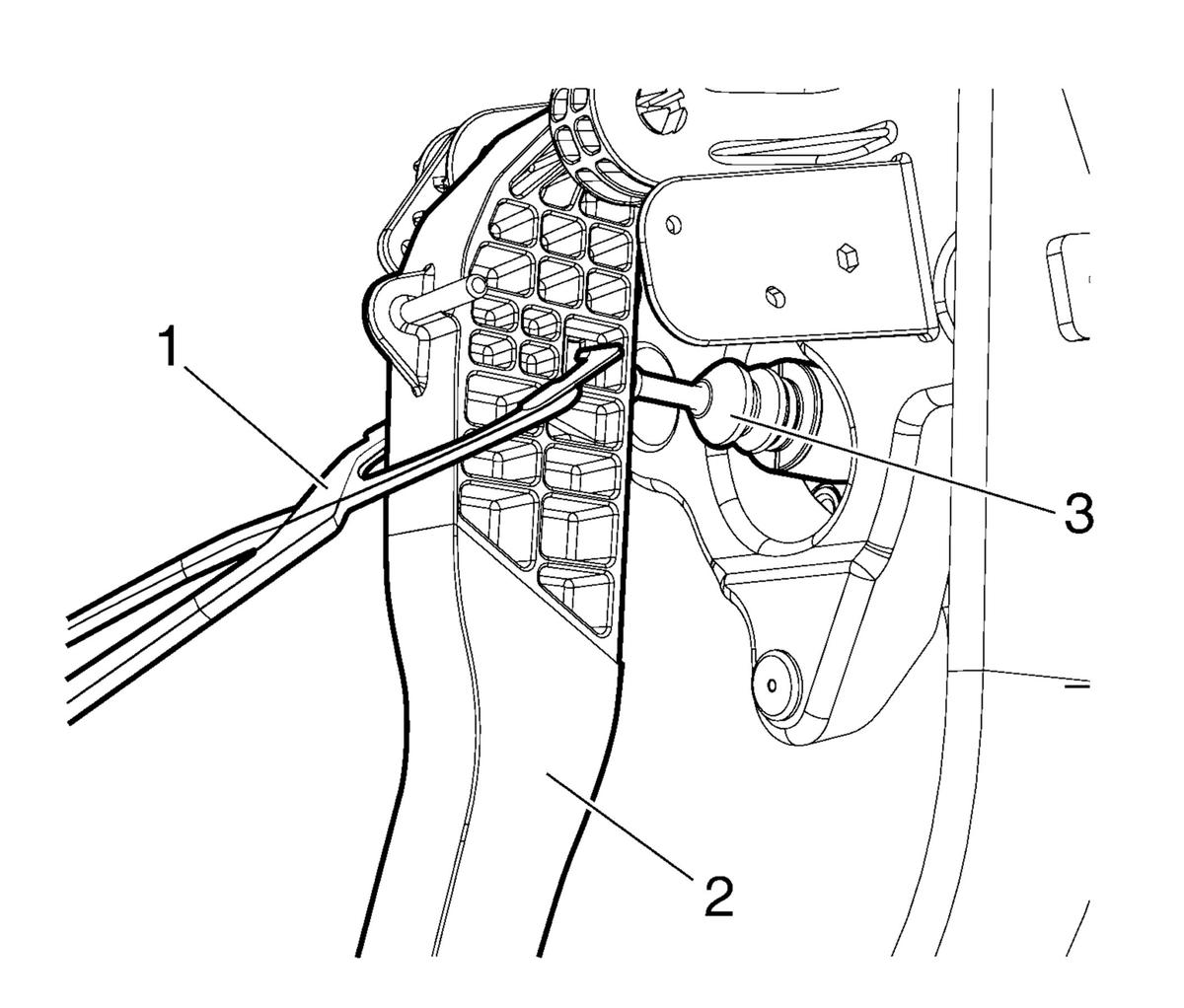

Disconnect the clutch master cylinder push rod from the clutch pedal (2), using the DT-6202-B pliers (1).
- Remove the clutch master cylinder (3) in the direction of the engine compartment.
