Rear Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

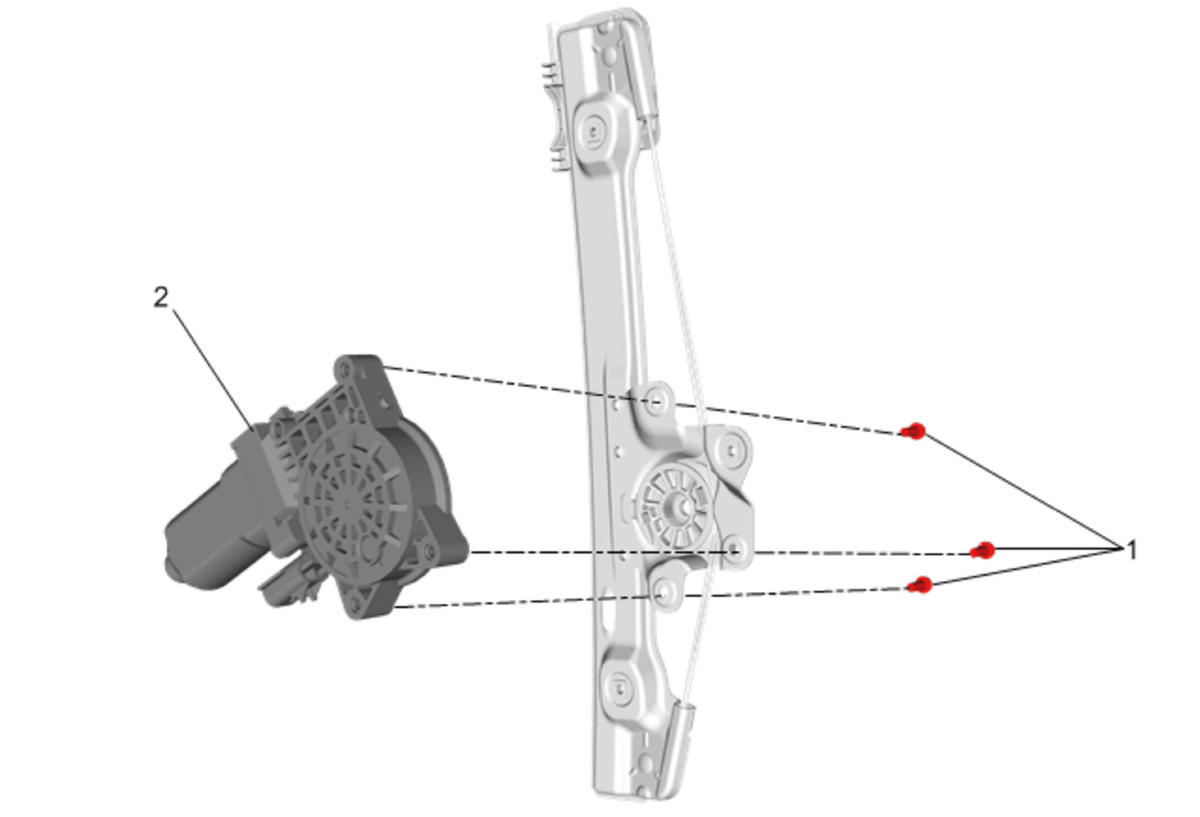

Fig 1: Rear Side Door Window Regulator Motor
GM4082523Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning .
Preliminary Procedure Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement (Power) Rear Side Door Window Regulator Replacement (Manual) .
1 Rear Side Door Window Regulator Motor Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)
2 Rear Side Door Window Regulator Motor

Procedure

  1. Inspect the door window for proper operation before installing the door trim.
  2. Perform the window regulator motor program relearn. Refer to Window Motor Programming - Express Function .
