Rear Side Door Window Regulator Replacement (Manual)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

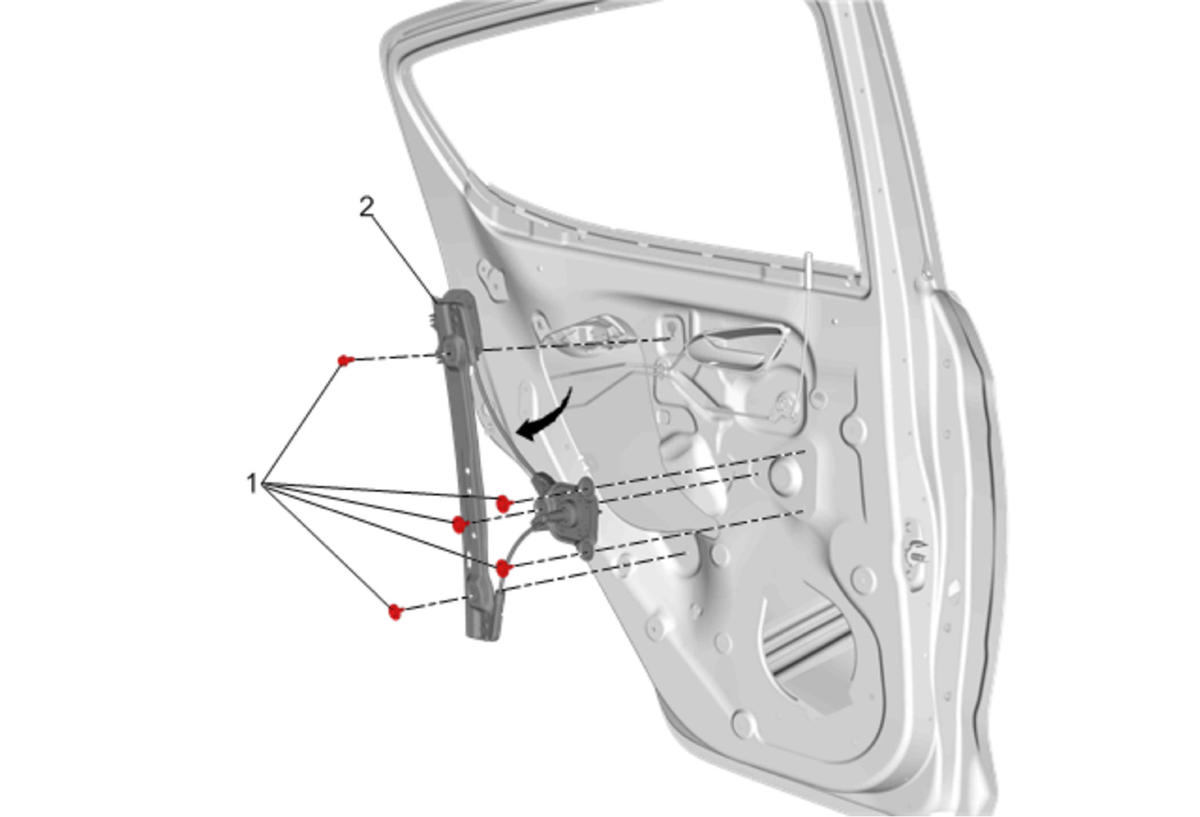

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door window from the window regulator guide nuts. Refer to Rear Side Door Window Replacement . |
|
| 1 | Rear Side Door Manual Window Regulator Bolts (Qty: 5)
CAUTION:
Refer to Fastener Caution
. Procedure Remove the rear side door water deflector. Tighten 11 N.m (97 lb in) |
| 2 | Rear Side Door Power Window Regulator Procedure Inspect the door window for proper operation before installing the door trim. |
