Rear Side Door Window Regulator Replacement (Power)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

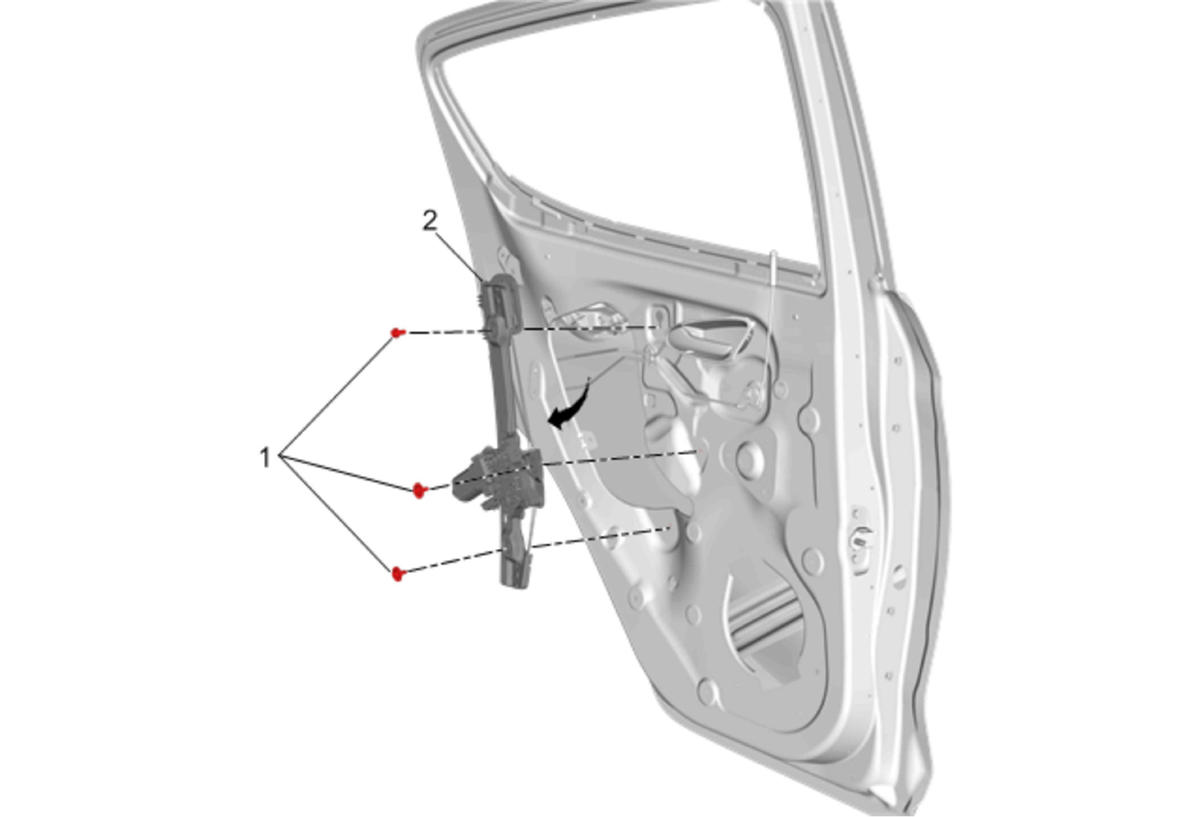

Fig 1: Rear Side Door Window Regulator (Power)
GM4032835Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning .
Preliminary Procedure Remove the rear side door window from the window regulator guide nuts. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place. Refer to Rear Side Door Window Replacement .
1 Rear Side Door Power Window Regulator Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Remove the rear side door water deflector.
  2. Disconnect the door electrical connector.

Tighten
11 N.m (97 lb in)
2 Rear Side Door Power Window Regulator
  1. Transfer the rear side door window regulator motor. Refer to Rear Side Door Window Regulator Motor Replacement .
  2. Inspect the door window for proper operation before installing the door trim.
  3. Perform the window regulator motor program relearn. Refer to Window Motor Programming - Express Function .
