Front Side Door Window Weatherstrip Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front side door trim. Refer to Front Side Door Trim Replacement
.
- Remove the front side door window. Refer to Front Side Door Window Replacement .
- Remove the front side door window belt reveal molding. Refer to Front Side Door Window Belt Reveal Molding Replacement .
|

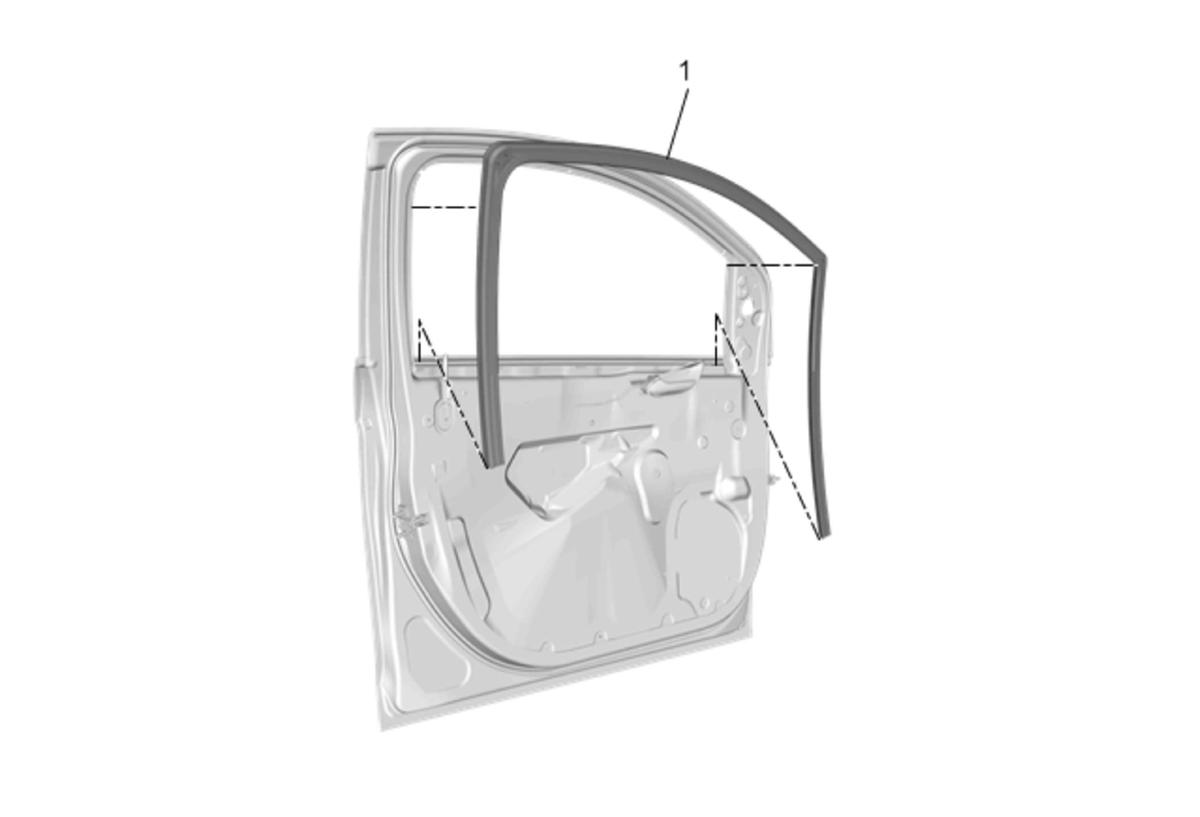

| 1 |
Front Side Door Window Weatherstrip Procedure
- Grasp both upper corners of the window weatherstrip, pull downward releasing the assembly from the door frame
- Insert the weatherstrip downward in the front and rear channel until fully seated.
- Position the window weatherstrip in the upper rear corner of the frame, work the weatherstrip around the door frame.
- Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the channels.
- Inspect the door window for proper operation before installing the door trim panel.
|
