Front Side Door Trim Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

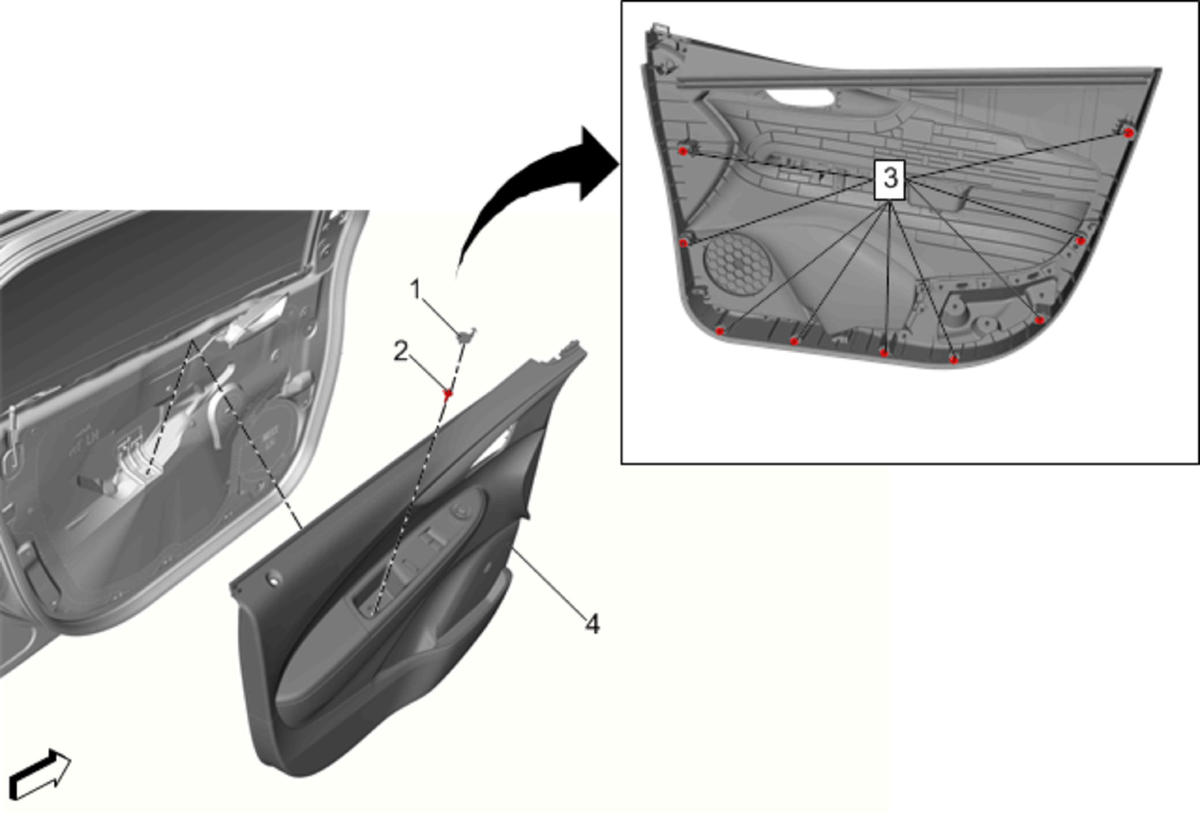

Fig 1: Front Side Door Trim

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door upper trim panel. Front Side Door Upper Trim Panel Replacement
1	Front Side Door Armrest Pull Cup Bolt Cap Procedure Use a flat bladed plastic tool to remove.
2	Front Side Door Trim Panel Fastener CAUTION: Refer to Fastener Caution .
3	Front Side Door Trim Clip (Qty: 9) WARNING: These retainers/clips MUST be replaced with new retainers/clips anytime they become loose or are removed. Failure to replace these retainers/clips after they become loose or are removed may cause a severe loss of safety in cases of a crash and lead to personal injury.
4	Front Side Door Trim Procedure Using a flat bladed plastic tool, loosen the front side door trim panel clips. Pull the front side door trim panel upwards to unlatch. Start releasing front side door trim panel retainer at the bottom. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector.
