Front Side Door Window Belt Reveal Molding Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

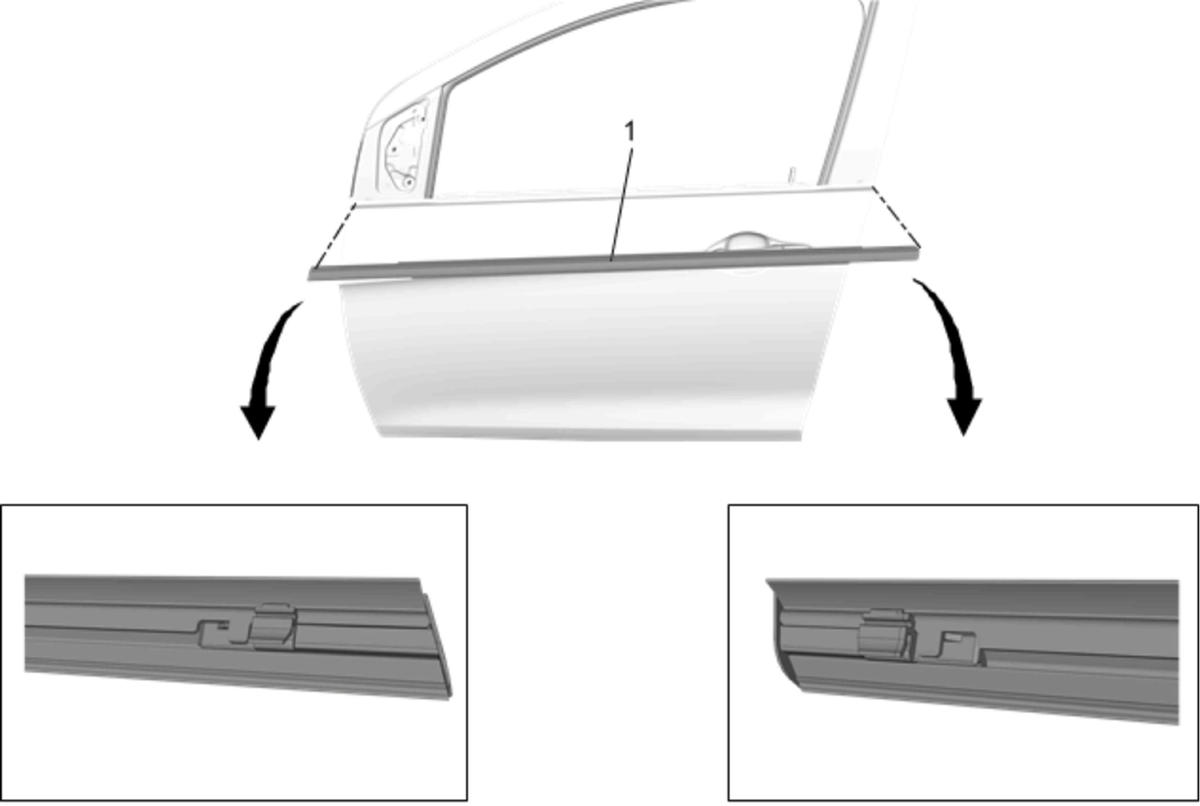

Fig 1: Front Side Door Window Belt Reveal Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the outside rearview mirror. Refer to Outside Rearview Mirror Replacement .
1	Front Side Door Window Belt Reveal Molding Use the appropriate tool, lift the rear corner of the window belt reveal molding and pull upward and away from the door flange. Press firmly to insert the front side door window belt reveal molding back on the door flange. Inspect the door window for proper operation.
