Front Side Door Window Switch Replacement - Right Side

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

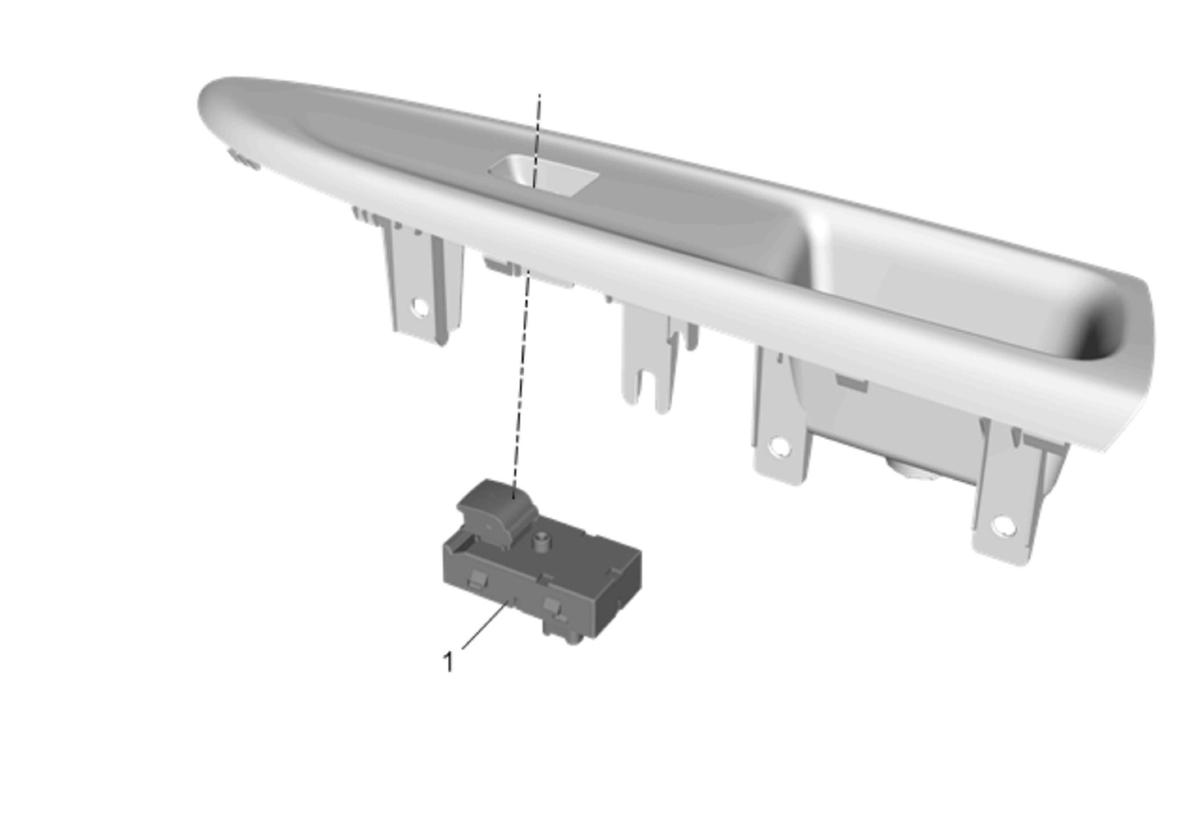

Fig 1: Front Side Door Window Switch - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement . Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement .
1	Front Side Door Window Switch Assembly Procedure Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the front side door trim. Refer to Front Side Door Trim Replacement .
Remove the front side door armrest switch mount plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement .

Front Side Door Window Switch Assembly
Procedure
Disconnect electrical connector.
