Front Side Door Armrest Switch Mount Plate Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

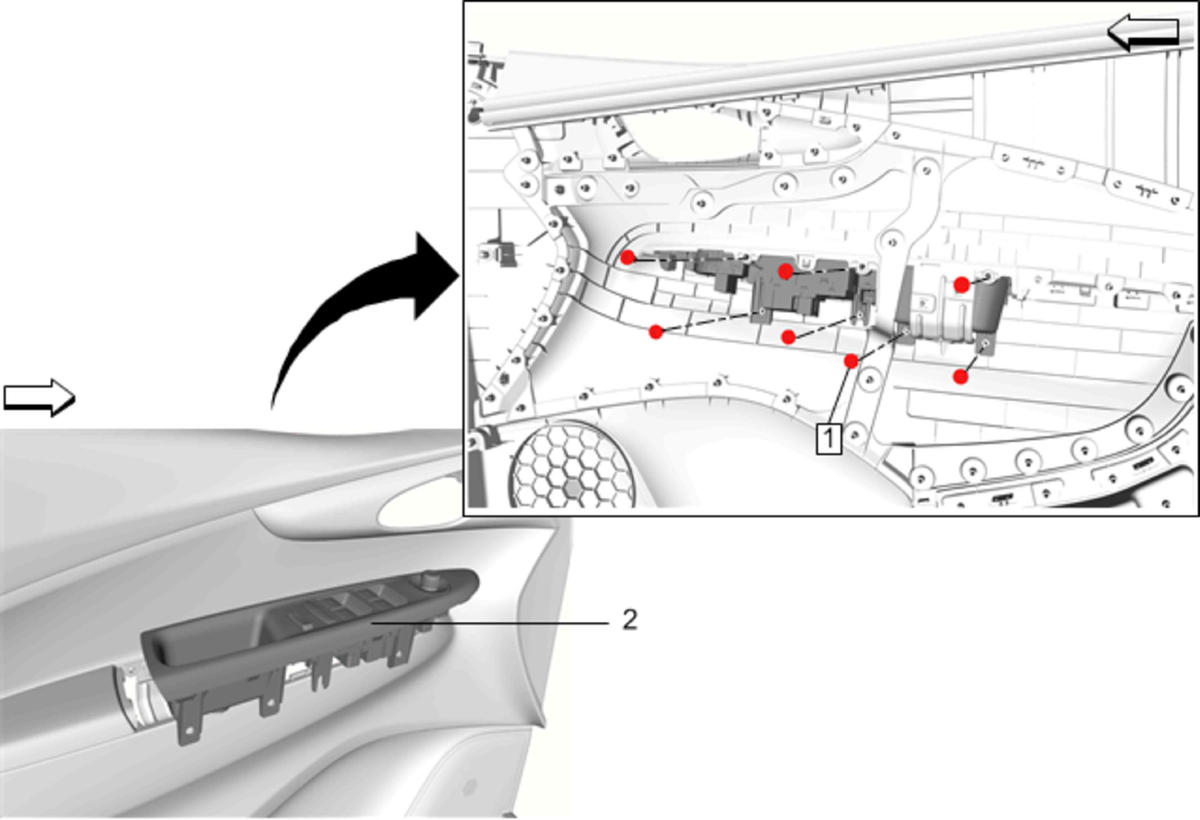

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement . |
|
| 1 | Front Side Door Armrest Switch Mount Plate Screw (Qty: 7)
CAUTION:
Refer to Fastener Caution
. Tighten 2.5 N.m (22 lb in) |
| 2 | Front Side Door Armrest Switch Mount Plate Procedure At the back of the door trim, release the locking tabs to door trim to remove the front side door armrest switch mount plate. |
