Fuel Tank Filler Door Latch Release Cable Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

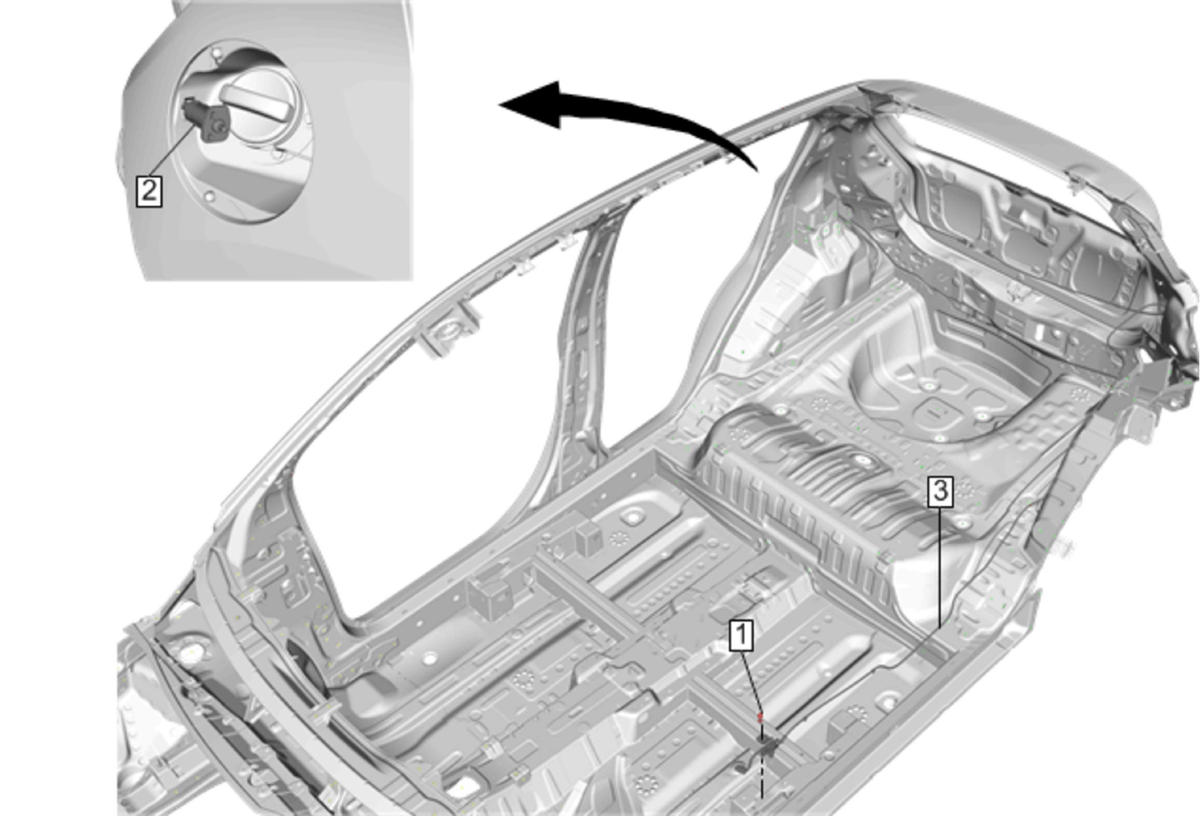

Fig 1: Fuel Tank Filler Door Latch Release Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement . Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement . Remove the rear side door sill garnish molding. Refer to Rear Side Door Sill Garnish Molding Replacement . Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Fuel Tank Filler Door Latch Release Cable Lever Bolt (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Fuel Tank Filler Door Latch NOTE: Remove the rear wheelhouse trim finish panel to access the fuel tank filler door latch.
3	Fuel Tank Filler Door Latch Release Cable
