Turn Signal Switch Bracket Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

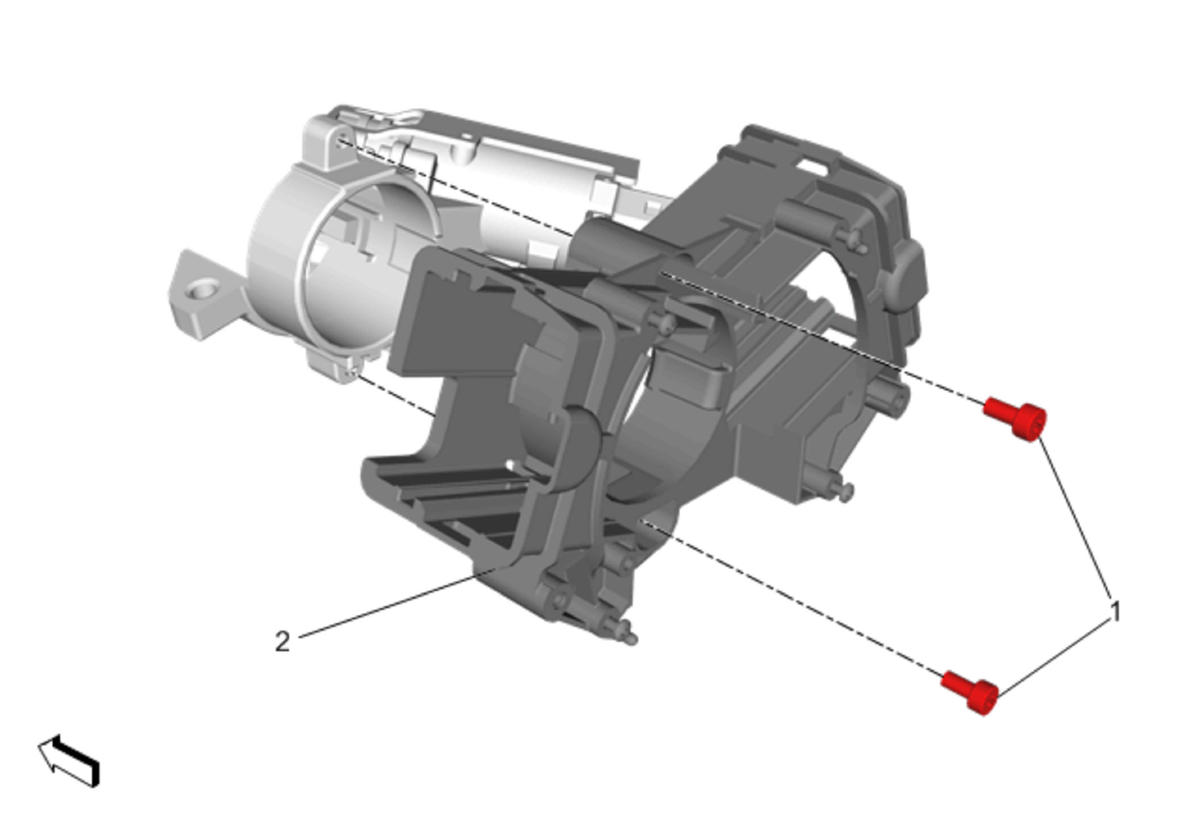

Fig 1: Turn Signal Switch Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering wheel airbag coil. Refer to Steering Wheel Airbag Coil Replacement . Remove the turn signal multifunction switch. Refer to Turn Signal Switch Replacement . Remove the windshield wiper and washer switch. Refer to Windshield Wiper and Washer Switch Replacement . If equipped, remove the theft deterrent module. Refer to Theft Deterrent Module Replacement . Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement .
1	Turn Signal Switch Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Turn Signal Switch Bracket

Callout

Component Name

Preliminary Procedures

Remove the steering wheel airbag coil. Refer to Steering Wheel Airbag Coil Replacement .
Remove the turn signal multifunction switch. Refer to Turn Signal Switch Replacement .
Remove the windshield wiper and washer switch. Refer to Windshield Wiper and Washer Switch Replacement .
If equipped, remove the theft deterrent module. Refer to Theft Deterrent Module Replacement .
Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement .

Turn Signal Switch Bracket Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Turn Signal Switch Bracket
