Ignition and Start Switch Housing Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

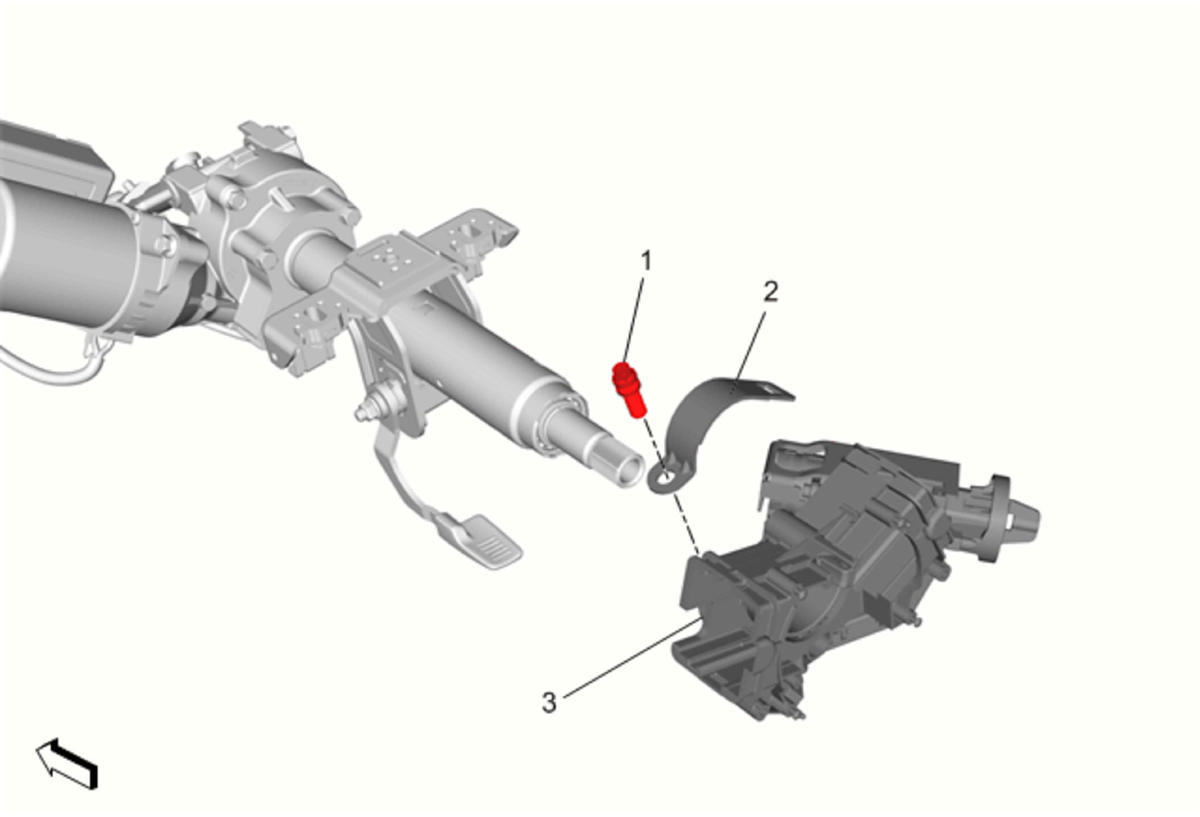

Fig 1: Ignition and Start Switch Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure 1. Remove the steering wheel. Refer to Steering Wheel Replacement . 2. Remove the theft deterrent module. Refer to Theft Deterrent Module Replacement .
1	Ignition and Start Switch Housing Bolt CAUTION: Refer to Fastener Caution . Procedure Use a vise plier to remove the OLD bolt. Discard the old ignition and start switch housing bolt. Install the NEW ignition and start switch housing bolt and tighten until the bolt head breaks off.
2	Ignition and Start Switch Housing Strap Procedure Install the right side of the strap to the hook on the right side of the housing.
3	Ignition and Start Switch Housing Procedure Disconnect electrical connectors. Remove the ignition and start switch housing with turn signal switch bracket. Transfer components as necessary.
