Steering Wheel Airbag Coil Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

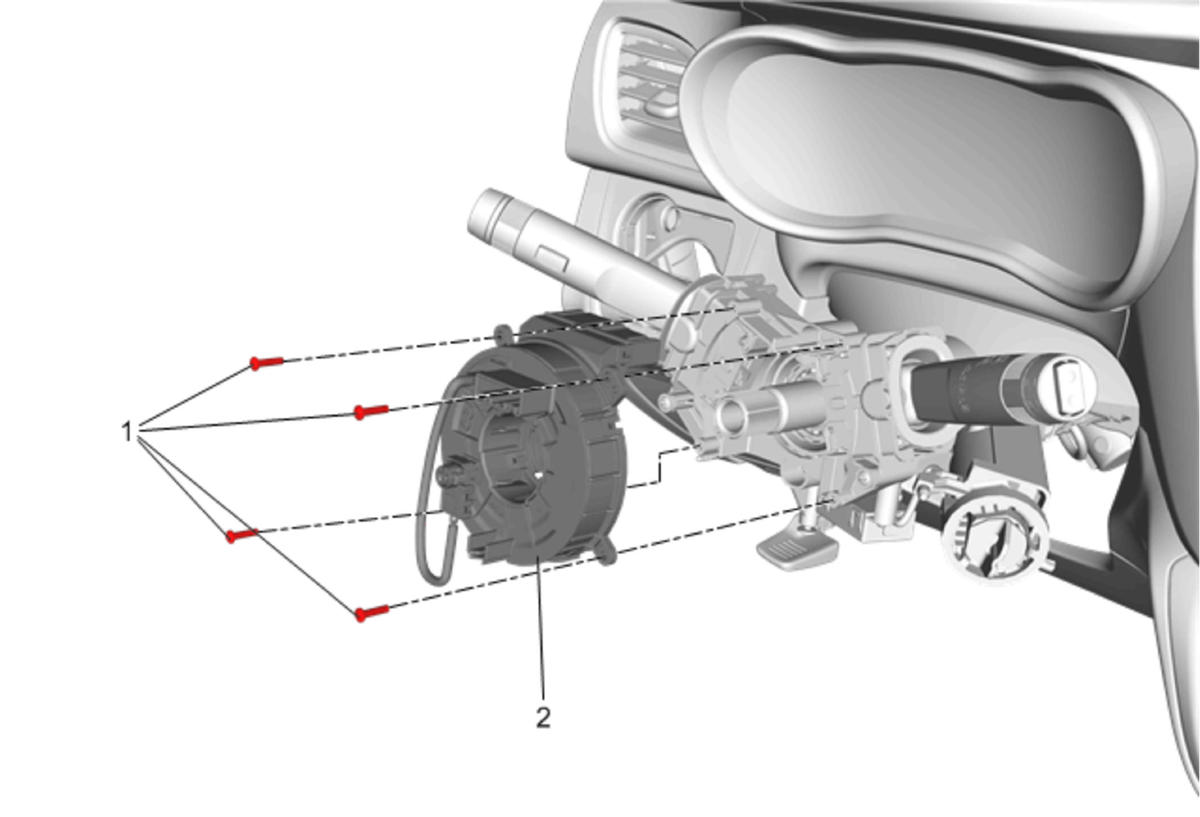

Fig 1: Steering Wheel Airbag Coil

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering wheel. Steering Wheel Replacement Remove the steering column lower trim cover. Steering Column Lower Trim Cover Replacement
1	Steering Wheel Airbag Coil Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Steering Wheel Air bag Coil Procedure Disconnect electrical connectors. Ensure the coil is centered during installation. If installing a NEW coil, remove the centering tab AFTER the coil is on the steering column. Refer to Airbag Steering Wheel Module Coil Centering .

Callout

Component Name

Preliminary Procedures

Remove the steering wheel. Steering Wheel Replacement
Remove the steering column lower trim cover. Steering Column Lower Trim Cover Replacement

Steering Wheel Airbag Coil Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Steering Wheel Air bag Coil

Procedure

Disconnect electrical connectors.
Ensure the coil is centered during installation. If installing a NEW coil, remove the centering tab AFTER the coil is on the steering column. Refer to Airbag Steering Wheel Module Coil Centering .
