Air Conditioning Condenser Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

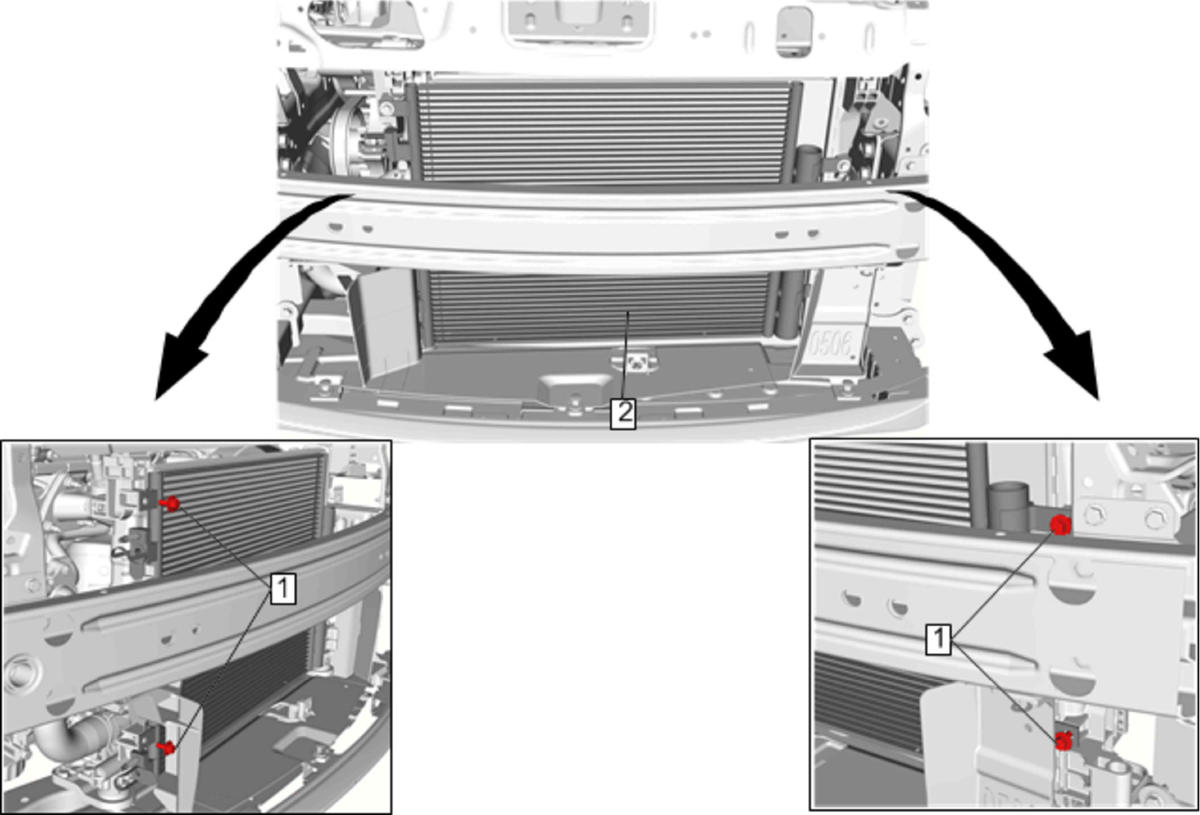

Fig 1: Air Conditioning Condenser

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) . Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the radiator air upper baffle. Refer to Radiator Air Upper Baffle and Deflector Replacement . Remove air conditioning compressor and condenser hose nut from the condenser. Refer to Air Conditioning Compressor and Condenser Hose Replacement Remove the air conditioning evaporator hose assembly nut from the condenser. Refer to Air Conditioning Evaporator Hose Assembly Replacement (L5Q) Air Conditioning Evaporator Hose Assembly Replacement (LV7) .
1	Air Conditioning Condenser Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Air Conditioning Condenser

Callout

Component Name

Preliminary Procedures

Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) .
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the radiator air upper baffle. Refer to Radiator Air Upper Baffle and Deflector Replacement .
Remove air conditioning compressor and condenser hose nut from the condenser. Refer to Air Conditioning Compressor and Condenser Hose Replacement
Remove the air conditioning evaporator hose assembly nut from the condenser. Refer to Air Conditioning Evaporator Hose Assembly Replacement (L5Q) Air Conditioning Evaporator Hose Assembly Replacement (LV7) .

Air Conditioning Condenser Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Air Conditioning Condenser
