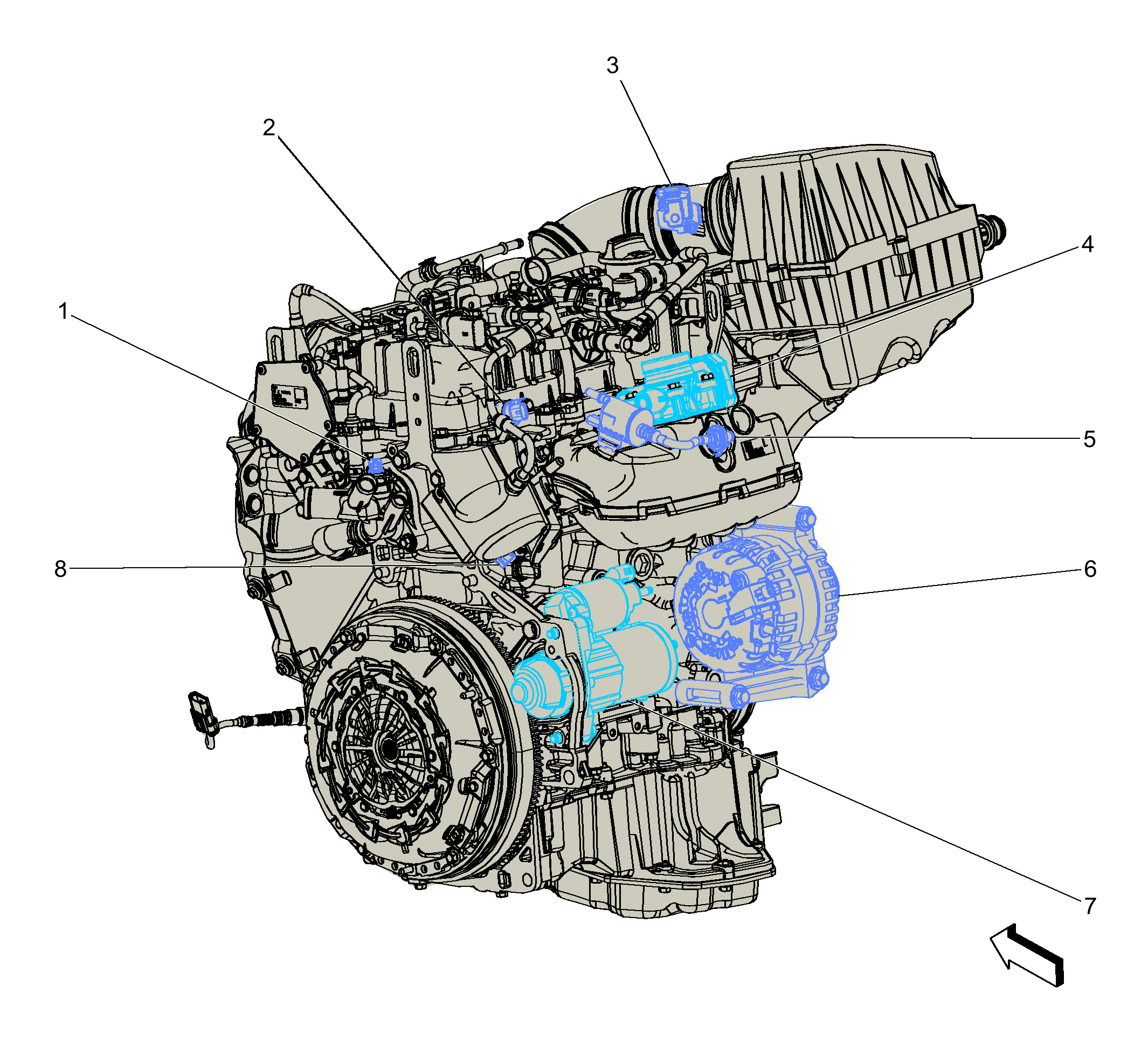

Engine Components - Left Rear (L5Q)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
| B75C Multifunction Intake Air Sensor (L5Q or LV7) B75C Multifunction Intake Air Sensor |
| Q38 Throttle Body Q38 Throttle Body |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| G13 Generator G13 Generator X1G13 Generator X2 |
| M64 Starter Motor M64 Starter Motor X1 M64 Starter Motor X2 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
