Rocker Panel Molding Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

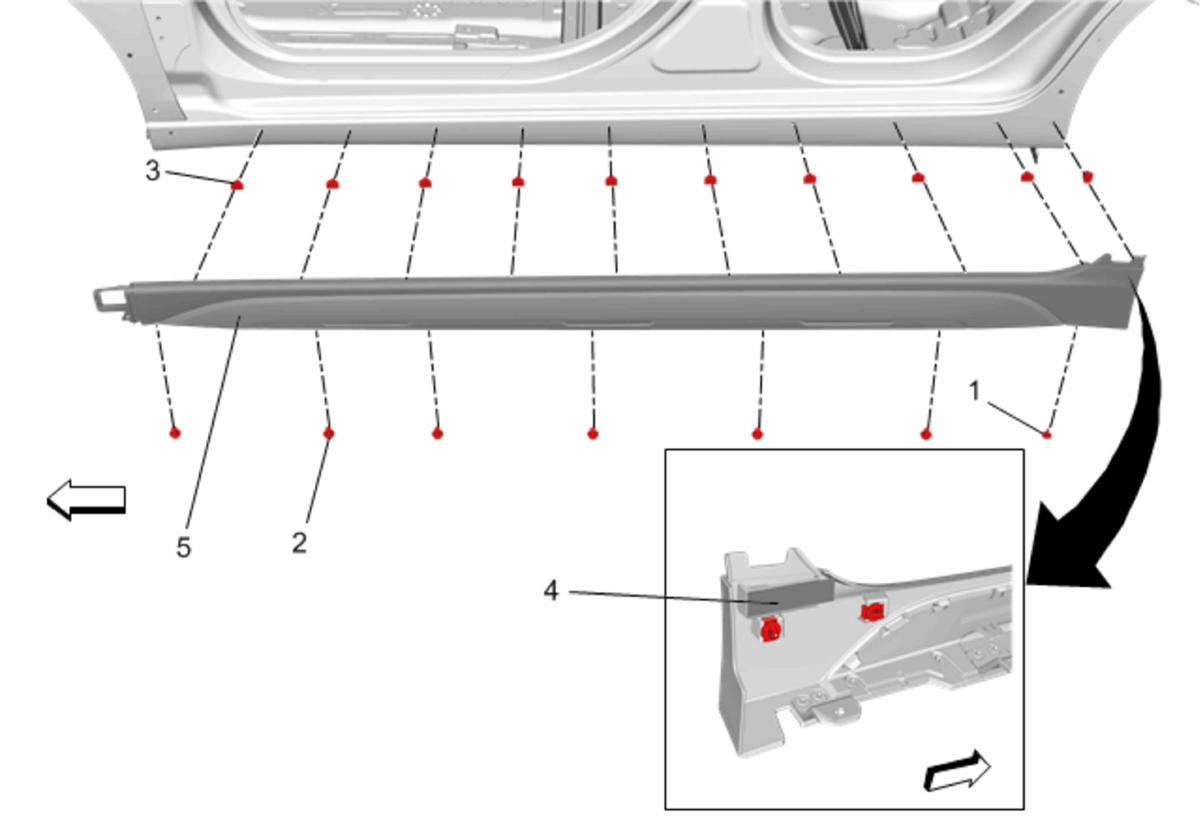

| Callout | Component Name |
|---|---|
|
Preliminary Procedure |
|
| 1 | Rear Mud Guard Bolt [1x]
CAUTION:
Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Rocker Panel Molding Clip [6x] |
| 3 | Rocker Panel Molding Retainer [10x] |
| 4 | Rocker Panel Molding Double-Sided Adhesive Tape [1x]
NOTE:
When installing new parts, attach the double-sided adhesive tape to molding.
|
| 5 | Rocker Panel Molding |
