Rear Wheel Opening Molding Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

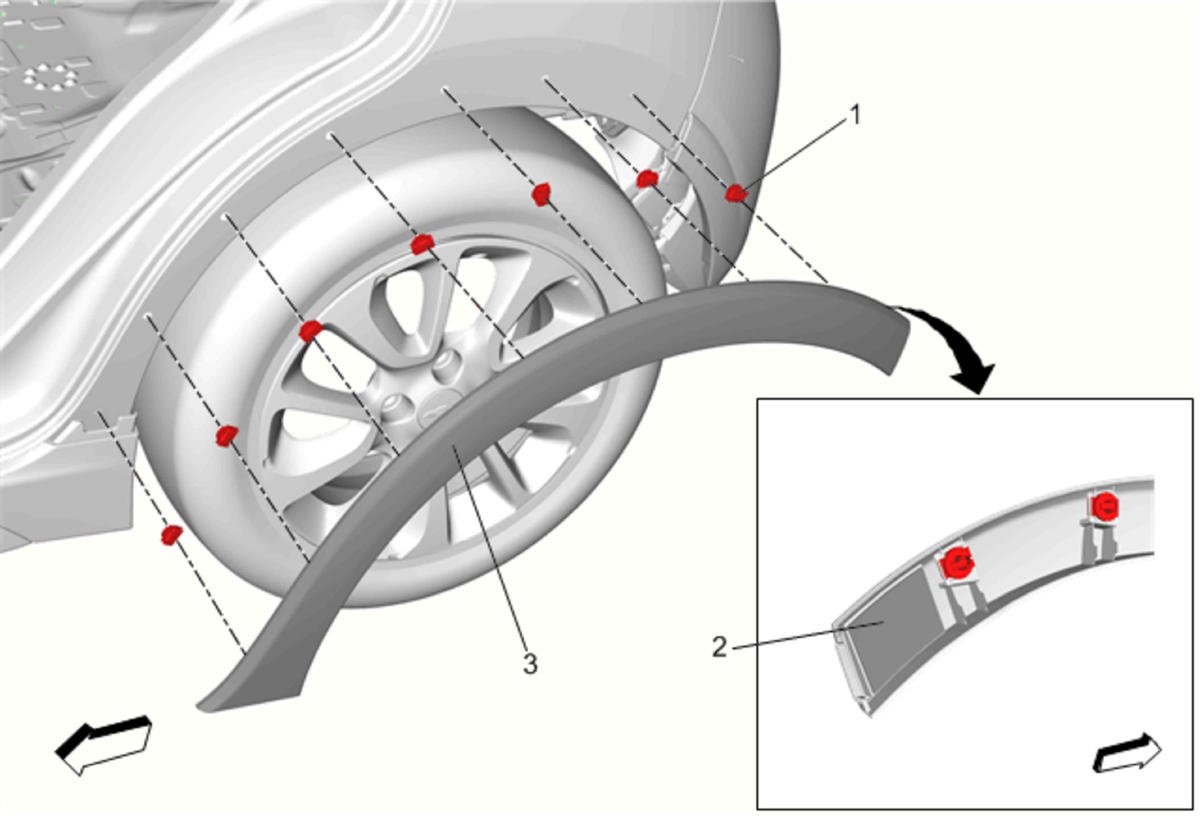

Fig 1: Rear Wheel Opening Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Wheel Opening Molding Clip [7x]
2	Rear Wheel Opening Molding Double-Sided Adhesive Tape [1x] NOTE: When installing new parts, attach the double-sided adhesive tape to molding.
3	Rear Wheel Opening Molding Procedure Open the rear side door. Apply masking tape around the edge of the rear wheel opening molding to prevent any paint surface damage. Using a trim type release tool, disengage the seven retainers from the body side outer panel. Replace the rear wheel opening molding retainers as needed.
