Front Wheel Opening Molding Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

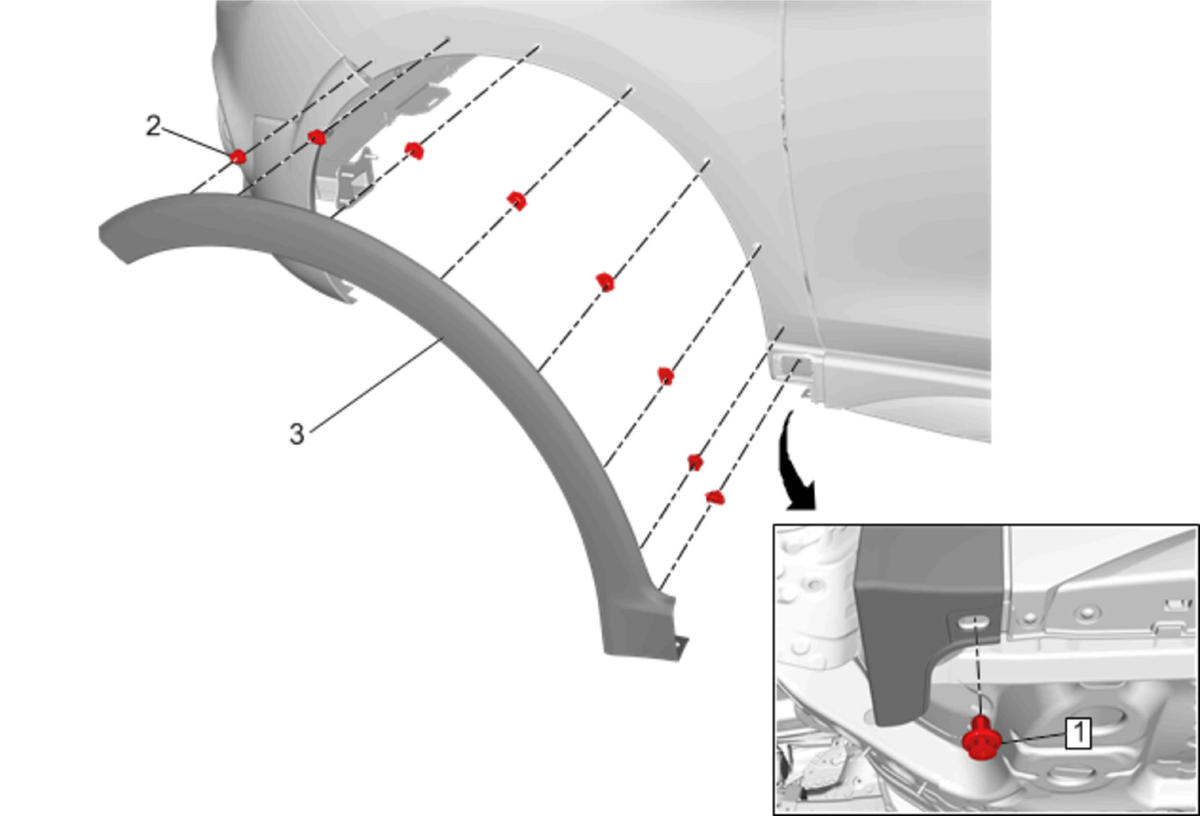

Fig 1: Front Wheel Opening Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Wheel Opening Molding Retainer [1x]
2	Front Wheel Opening Molding Clip [8x]
3	Front Wheel Opening Molding Procedure Using a trim type release tool, working from the inside fender flange area, disengage the eight retainers from the front fender. Replace the front wheel opening molding retainers as needed.
