Body Rear Outer Panel Pressure Relief Valve Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

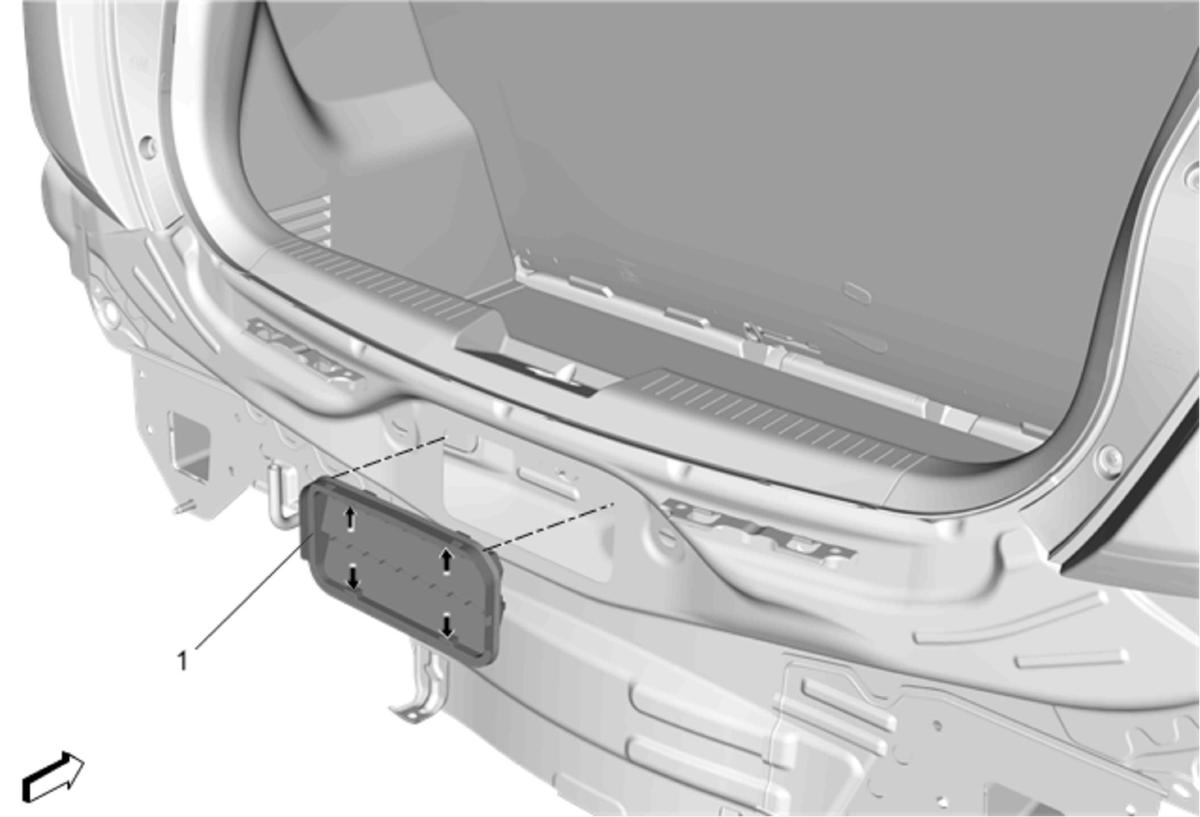

Fig 1: Body Rear Outer Panel Pressure Relief Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement (Active) .
1	Body Rear Outer Panel Pressure Relief Valve Procedure Release the tabs attaching the valve to the inner rear panel to remove the body rear outer panel pressure relief valve.
