Rear Bumper Fascia Replacement (Active)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

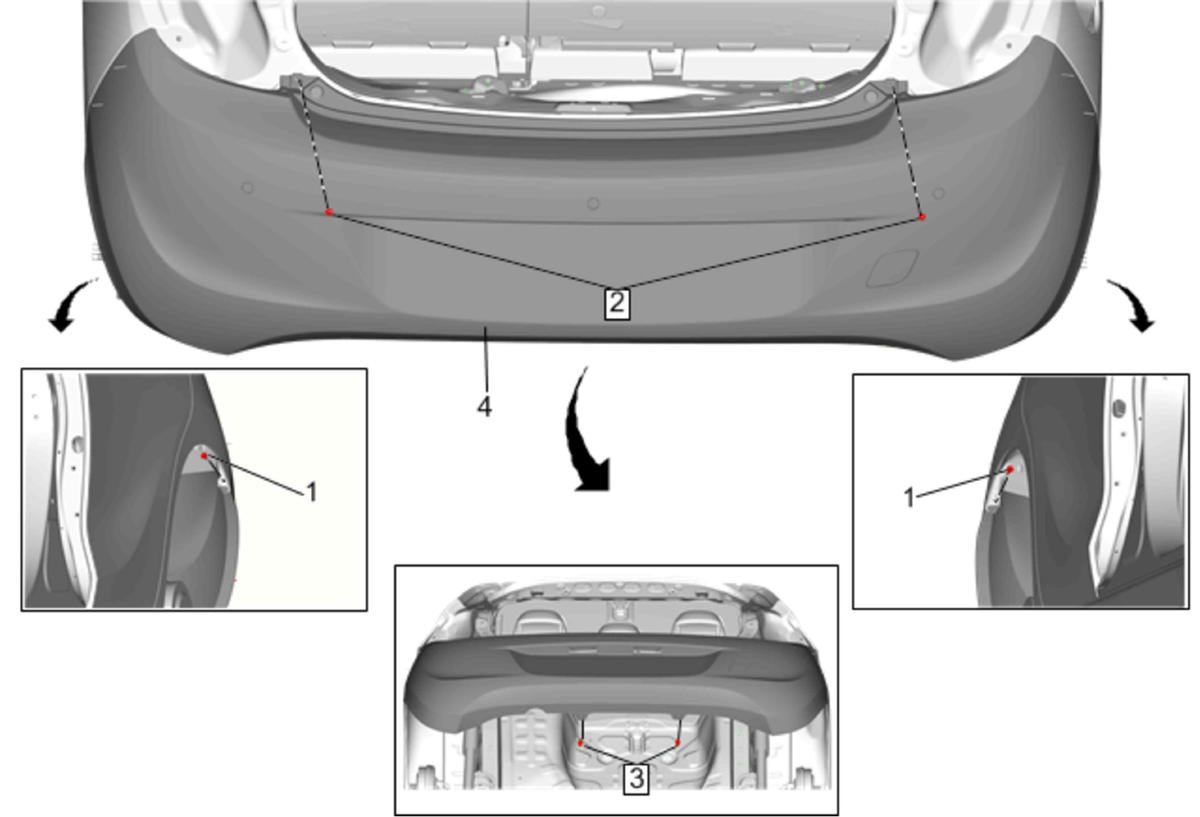

Fig 1: Rear Bumper Fascia
GM4032131Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the tail lamps. Refer to Tail Lamp Replacement
1 Rear Bumper Fascia Guide Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (20 lb in)
2 Rear Bumper Fascia Screw (Qty: 2)
Tighten
1.8 N.m (16 lb in)
3 Rear Bumper Fascia Bolt (Qty: 2)
Tighten
4 N.m (35 lb in)
4 Rear Bumper Fascia

Procedure

  1. Unclip from rear bumper fascia guides.
  2. Pull forward to remove the rear bumper fascia.
  3. Disconnect any electrical connectors.
  4. Transfer parts as needed.
