Installation Procedure
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

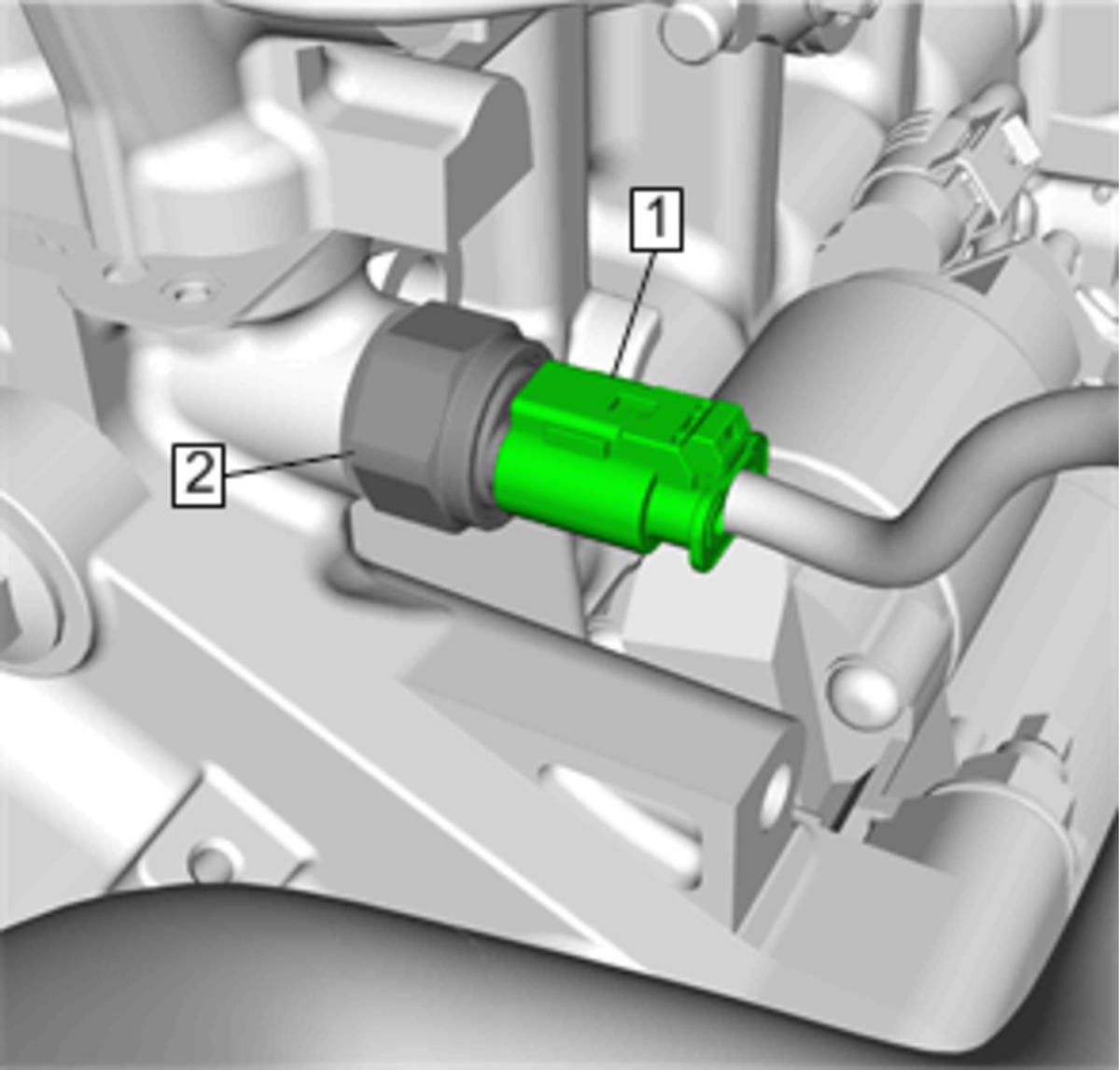

- Install the engine oil pressure sensor (2) to the engine and tighten to 35 N.m (26 lb ft).
CAUTION: Refer to Fastener Caution .
- Connect the engine oil pressure sensor connector (1).

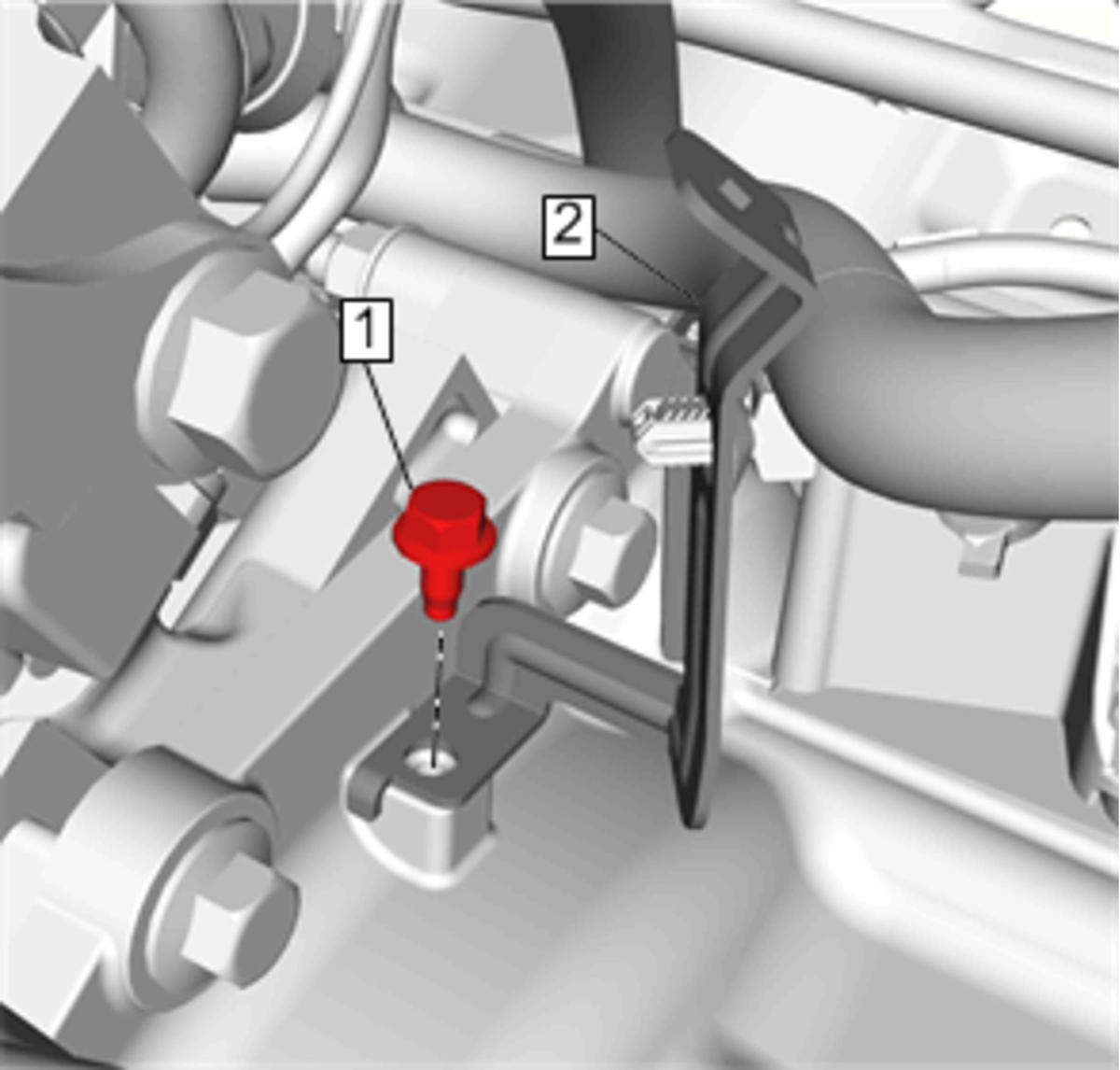

- Install the transmission mount bracket bolt (1) and transmission mount bracket (2) and tighten to 22 N.m (16 lb ft).

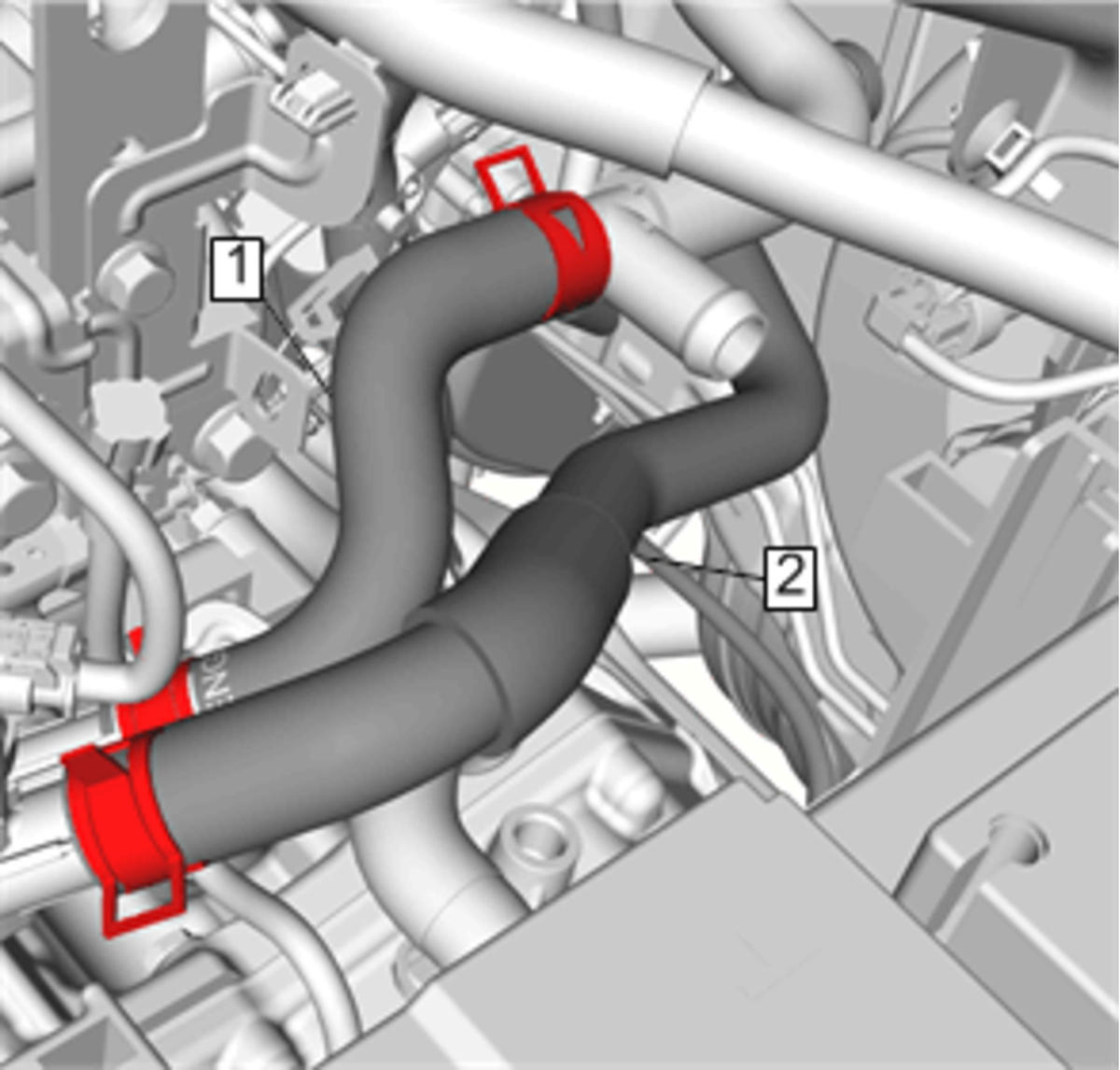

- Install the front heater outlet hose (1). Refer to Heater Outlet Hose Replacement .
- Install the heater inlet hose assembly (2). Refer to Heater Inlet Hose Replacement .
- Install the engine control module. Refer to Engine Control Module Replacement .
- Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
- Fill the cooling system. Refer to Cooling System Draining and Filling .
