Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat bypass pipe (3).

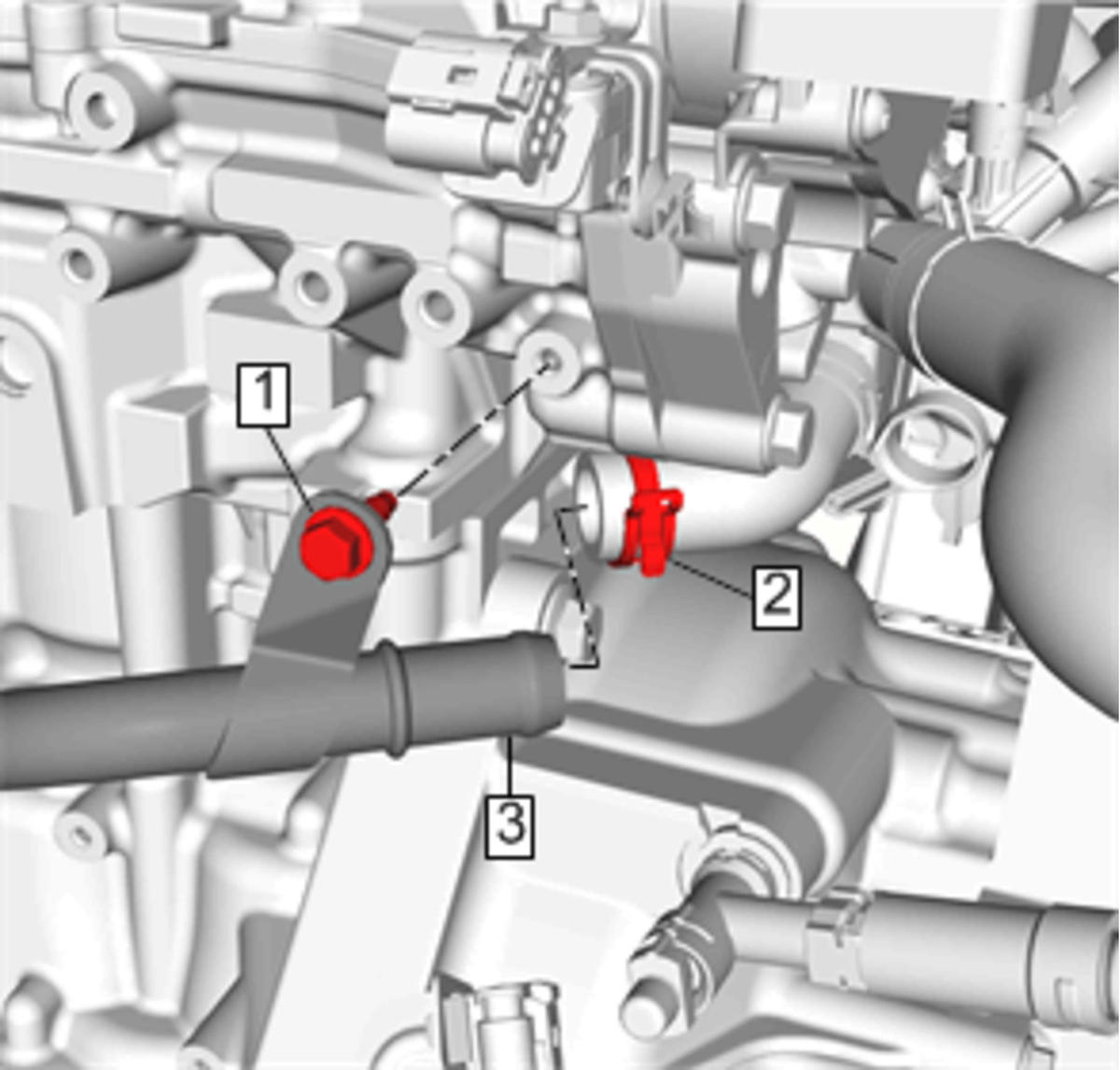

    Fig 1: Thermostat Bypass Pipe And Bolt
    GM4230581Courtesy of GENERAL MOTORS COMPANY
  2. Install the thermostat bypass pipe bolt (1) and tighten to 10 N.m (89 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the clamp (2).
  4. Install a NEW thermostat bypass pipe gasket (1).

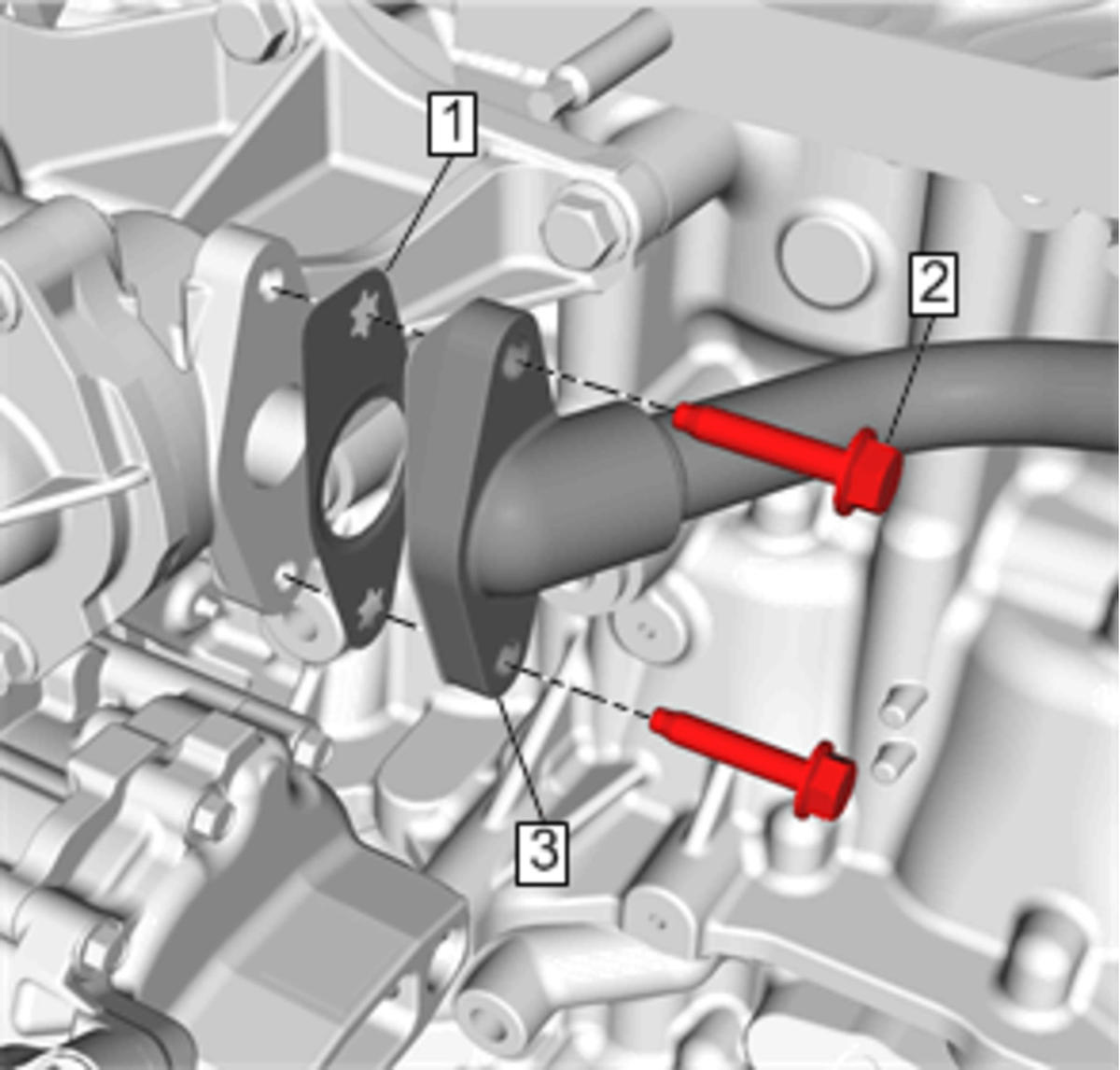

    Fig 2: Thermostat Bypass Pipe Gasket And Bolts
    GM4230582Courtesy of GENERAL MOTORS COMPANY
  5. Install the 2 thermostat bypass pipe bolts (2) and tighten to 10 N.m (89 lb in).
  6. Install the catalytic converter heat shield. Refer to Catalytic Converter Heat Shield Replacement (LV7) .
  7. Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
  8. Fill the cooling system. Refer to Cooling System Draining and Filling .
