Catalytic Converter Heat Shield Replacement (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

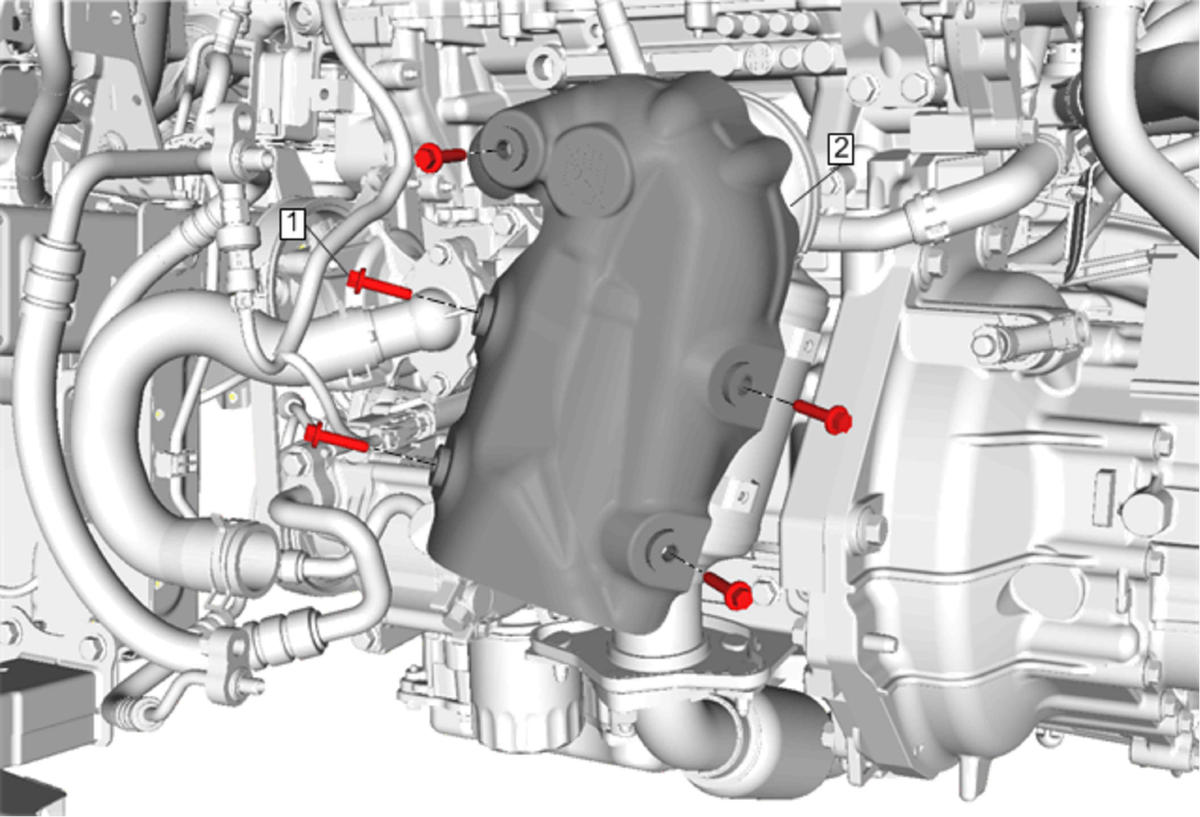

Fig 1: Catalytic Converter Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . Preliminary Procedure Remove the Engine Pressure Sensor Bracket. And set aside.
1	Catalytic Converter Heat Shield Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Catalytic Converter Heat Shield

Callout

Component Name

WARNING: Refer to Exhaust Service Warning .

Preliminary Procedure

Remove the Engine Pressure Sensor Bracket. And set aside.

Catalytic Converter Heat Shield Bolt (Qty: 5)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Catalytic Converter Heat Shield
