Rear Bumper Fascia Guide Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

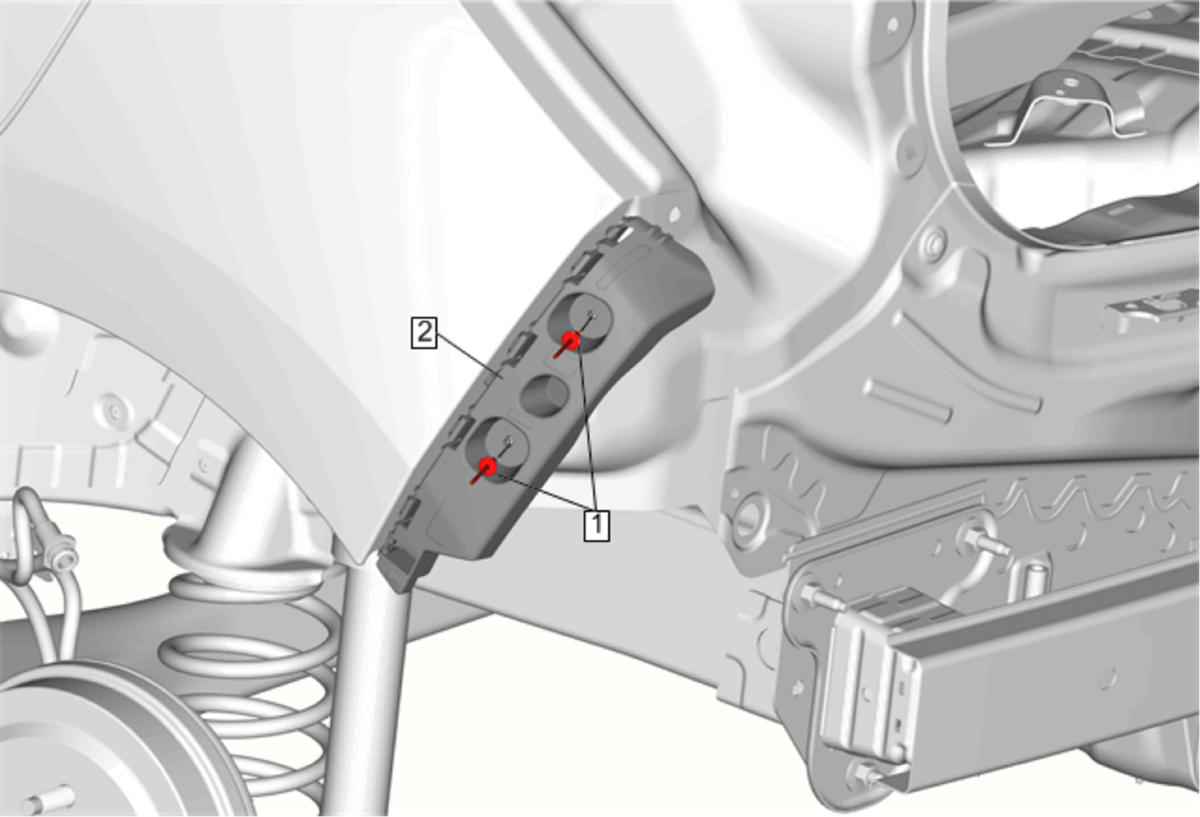

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement (Active) . |
|
| 1 | Rear Bumper Fascia Guide Rivet (Qty: 2) Special Tools BO-594-A Hand Rivet Tongs For equivalent regional tools, refer to Special Tools . |
| 2 | Rear Bumper Fascia Guide |
