Instrument Panel Lower Airbag Bracket Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

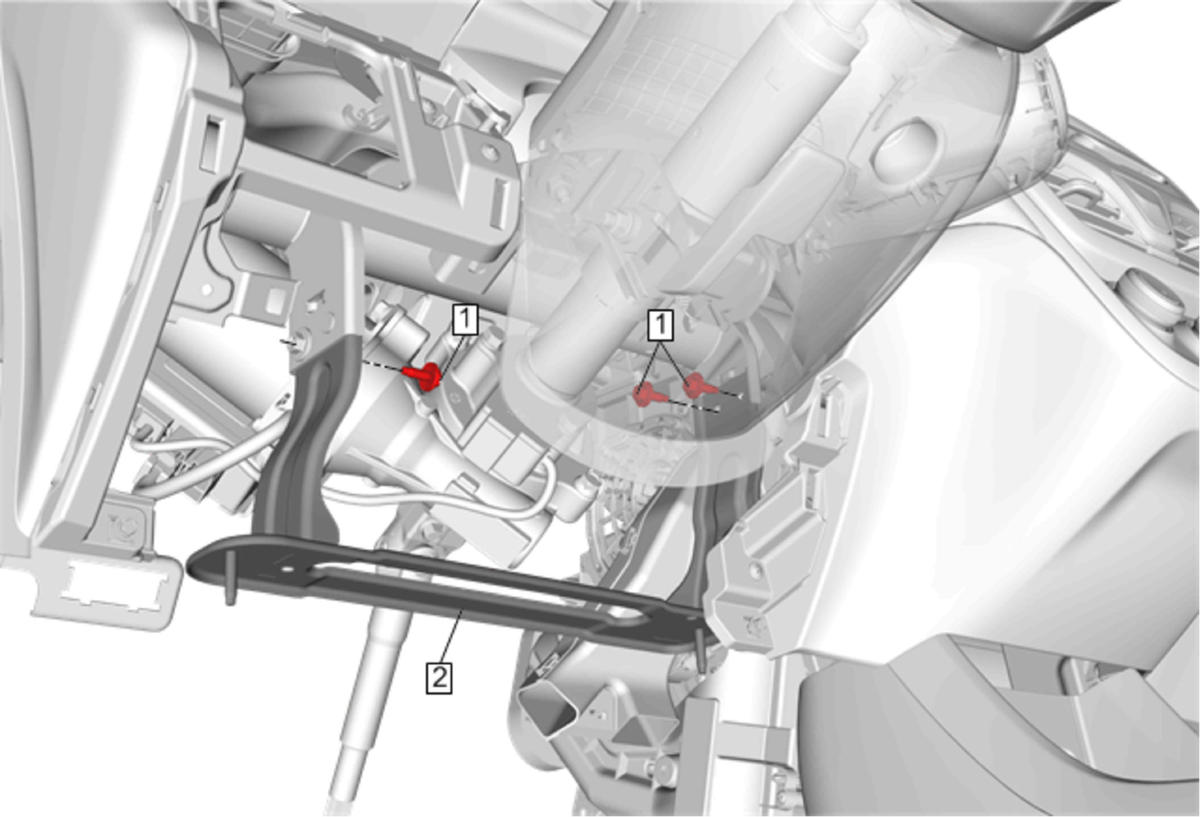

Fig 1: Instrument Panel Lower Airbag Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling Instrument Panel Lower Airbag Replacement - Driver Side Instrument Panel Knee Bolster Replacement
1	Instrument Panel Lower Airbag Bracket Bolt [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Instrument Panel Lower Airbag Bracket Procedure Enable the SIR System. Refer to SIR Disabling and Enabling

Callout

Component Name

WARNING: Refer to SIR Inflator Module Handling and Storage Warning .

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling
Instrument Panel Lower Airbag Replacement - Driver Side
Instrument Panel Knee Bolster Replacement

Instrument Panel Lower Airbag Bracket Bolt [3x]

CAUTION: Fastener Caution

Tighten
9 N.m (80 lb in)

Instrument Panel Lower Airbag Bracket
Procedure
Enable the SIR System. Refer to SIR Disabling and Enabling
