Instrument Panel Lower Airbag Replacement - Driver Side

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

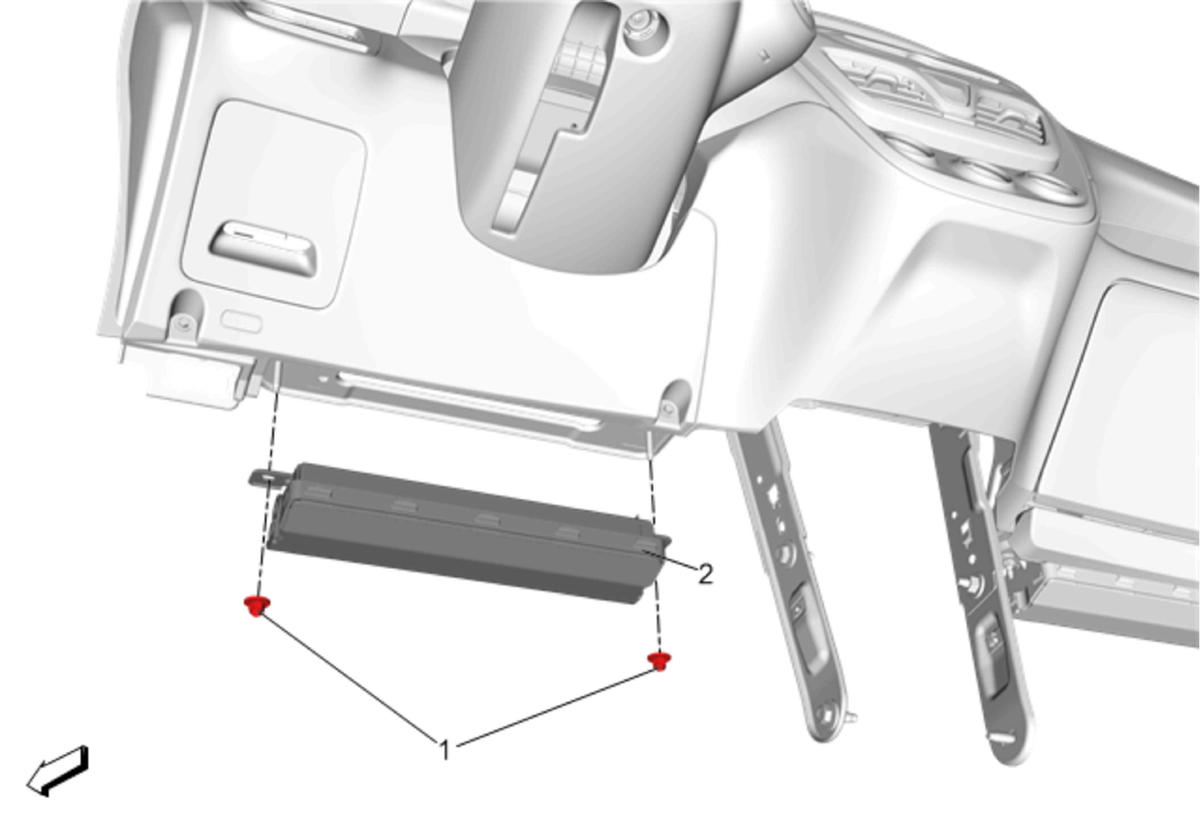

Fig 1: Inflatable Restraint Instrument Panel Lower Module - Driver Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Instrument Panel Lower Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Inflatable Restraint Instrument Panel Lower Module Procedure Disconnect the electrical connector. For proper handling and scrapping, refer to Inflatable Restraint Module Handling and Scrapping .

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .

Inflatable Restraint Instrument Panel Lower Module Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Inflatable Restraint Instrument Panel Lower Module

Procedure

Disconnect the electrical connector.
For proper handling and scrapping, refer to Inflatable Restraint Module Handling and Scrapping .
