Liftgate Wiring Harness Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

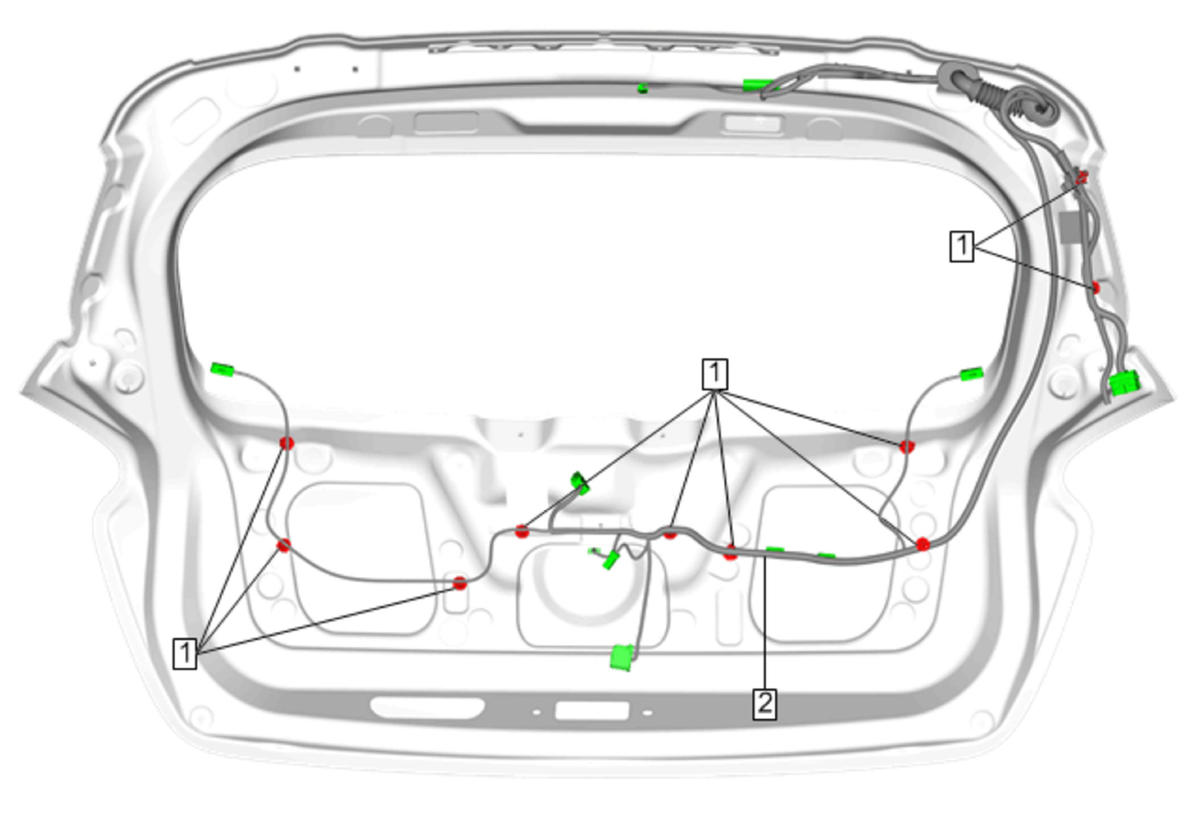

Fig 1: Liftgate Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement . Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement . Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Liftgate Wiring Harness Retainer (Qty: 10)
2	Liftgate Wiring Harness

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .
Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .
Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .

Liftgate Wiring Harness Retainer (Qty: 10)

Liftgate Wiring Harness
