Liftgate Trim Finish Panel Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

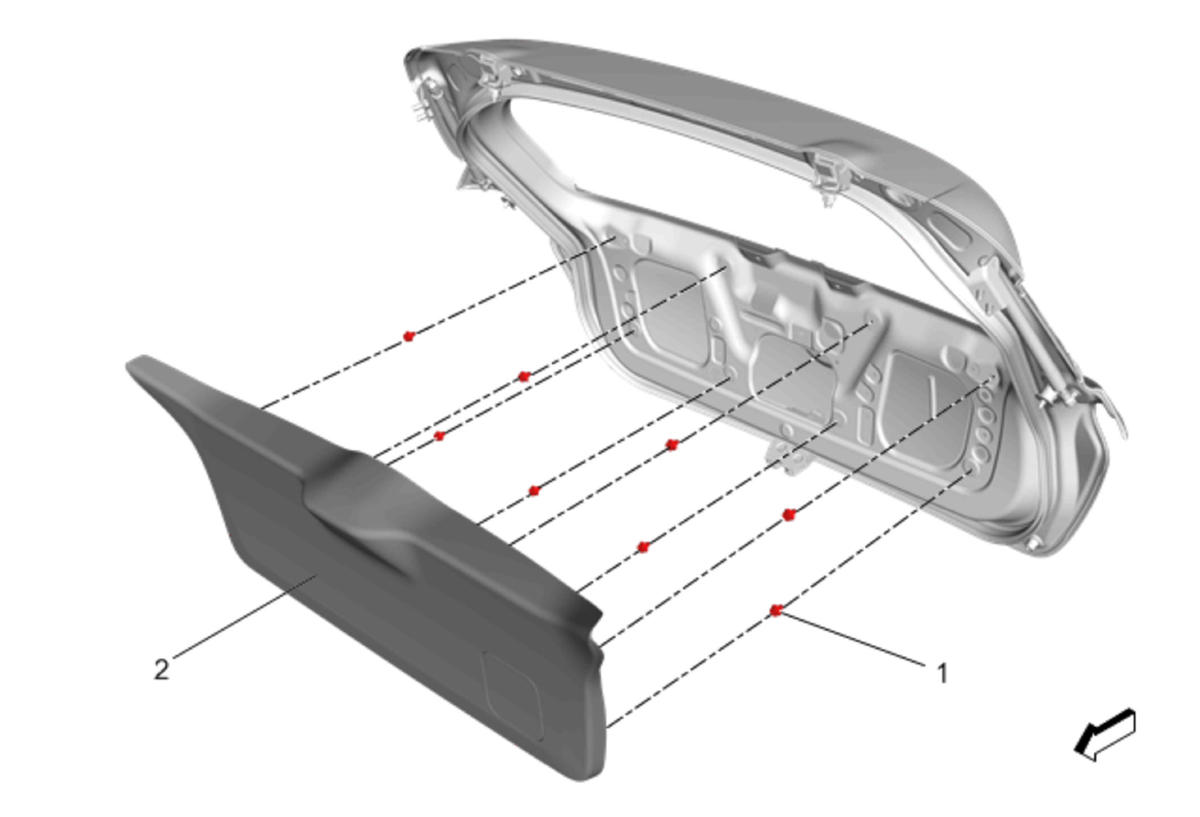

Fig 1: Liftgate Trim Finish Panel
GM4053561Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Trim Finish Panel Retainer (Qty: 8)
2 Liftgate Trim Finish Panel
Procedure
Use a flat bladed plastic tool to remove.
