Instrument Panel Cluster Trim Plate Replacement

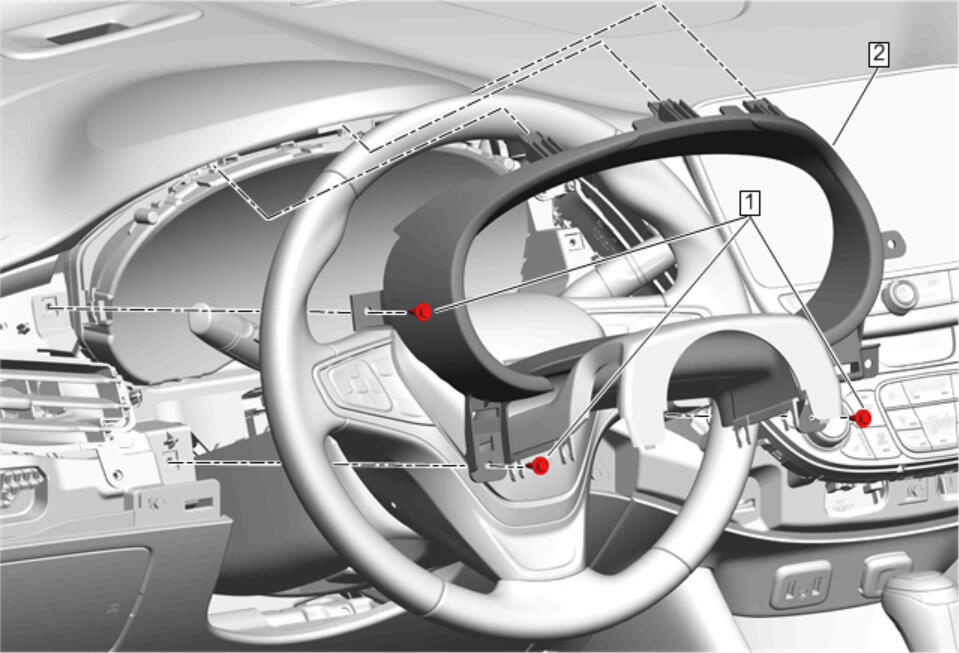

GM4233918
Callout Component Name

Preliminary Procedure

  1. Instrument Panel Trim Plate Applique Replacement - Left Side
  2. Instrument Panel Trim Pad Replacement - Right Side
  3. Instrument Panel Center Trim Plate Applique Replacement
1 Instrument Panel Cluster Trim Plate Bolt [3x]
CAUTION:

Refer to FASTENER CAUTION .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Cluster Trim Plate

Procedure

  1. Turn the steering wheel to the left and right in order to release the tabs securing the steering column upper trim cover to the lower trim cover.
  2. Release the retainer.
  3. Transfer components as necessary.
