Instrument Panel Center Trim Plate Applique Replacement

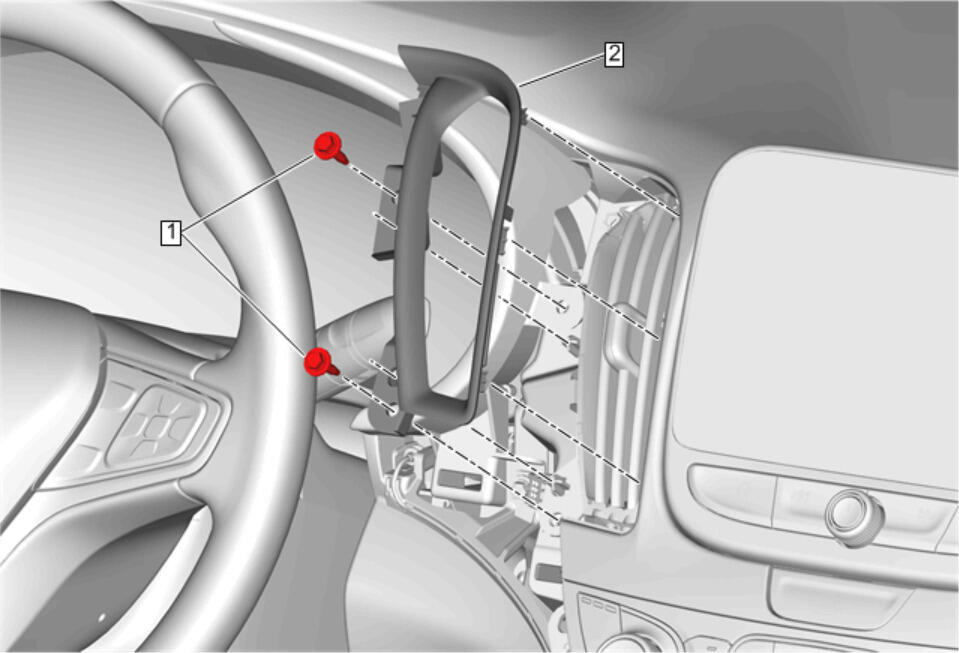

GM4232843
Callout Component Name
Preliminary Procedure
Instrument Panel Center Trim Pad Replacement - Right Side
1 Instrument Panel Center Trim Plate Applique Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Center Trim Plate Applique
Procedure
Use a flat bladed plastic trim tool.
