Instrument Panel Trim Pad Replacement - Right Side

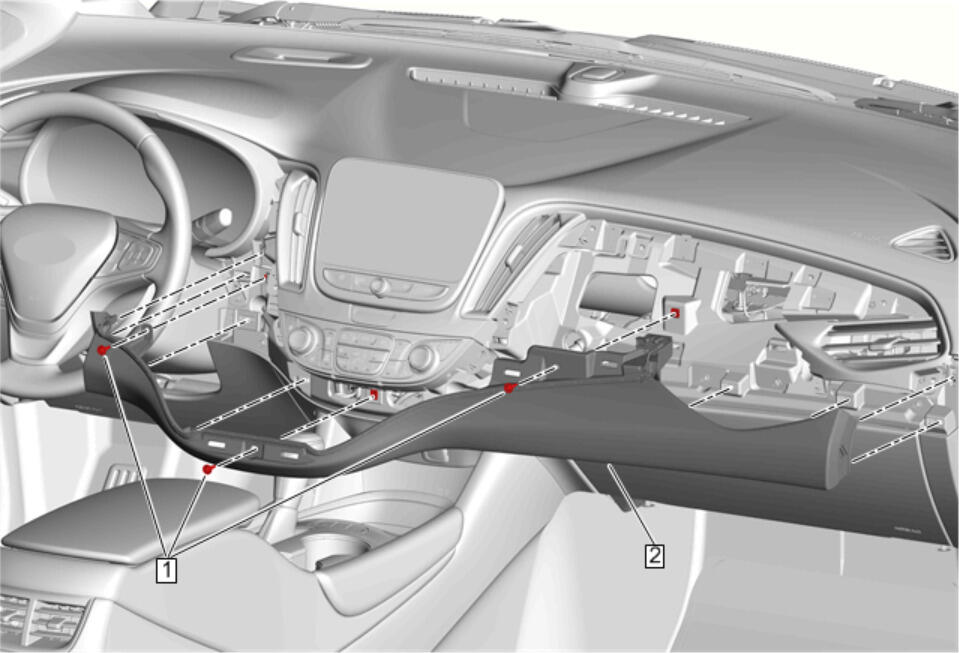

Callout	Component Name
Preliminary Procedure Instrument Panel Outer Trim Cover Replacement Instrument Panel Center Trim Pad Replacement - Right Side
1	Instrument Panel Trim Pad Bolt [3x] CAUTION: Refer to FASTENER CAUTION . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Trim Pad Procedure Use a plastic trim tool if necessary. Disconnect electrical connections, if applicable.

Callout

Component Name

Preliminary Procedure

Instrument Panel Trim Pad Bolt [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Trim Pad

Procedure
