Radio Replacement (RPO IOA)

Courtesy of GENERAL MOTORS COMPANY

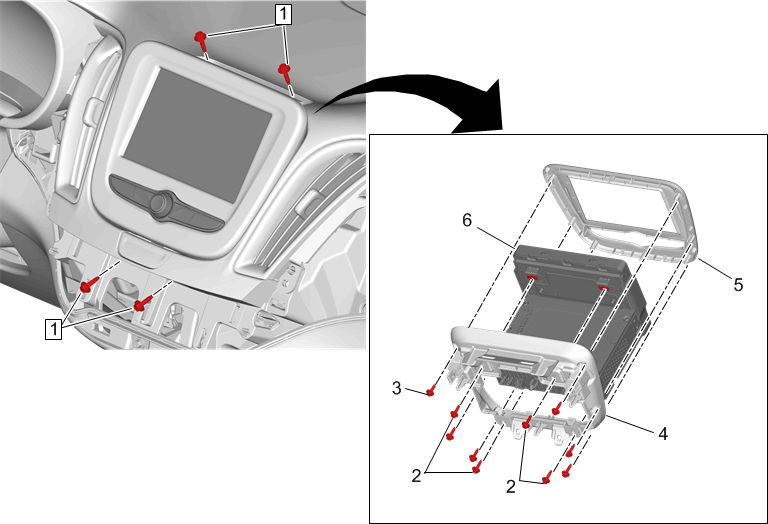

Callout	Component Name
Preliminary Procedures Instrument Panel Center Bolt Cover Replacement Heater and Air Conditioning User Interface Control Replacement (CJ2)Heater and Air Conditioning User Interface Control Replacement (C4P)
1	Instrument Panel Trim Plate Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Bolt [4x] Tighten 2.5 N.m (22 lb in)
3	Instrument Panel Bolt [6x] Tighten 1.2N.m (11 lb in)
4	Instrument Panel Trim Plate Procedure Release the retainers.
5	Instrument Panel Accessory Center Trim Plate
6	Radio Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and setup procedures, if required.
