Heater and Air Conditioning User Interface Control Replacement (CJ2)

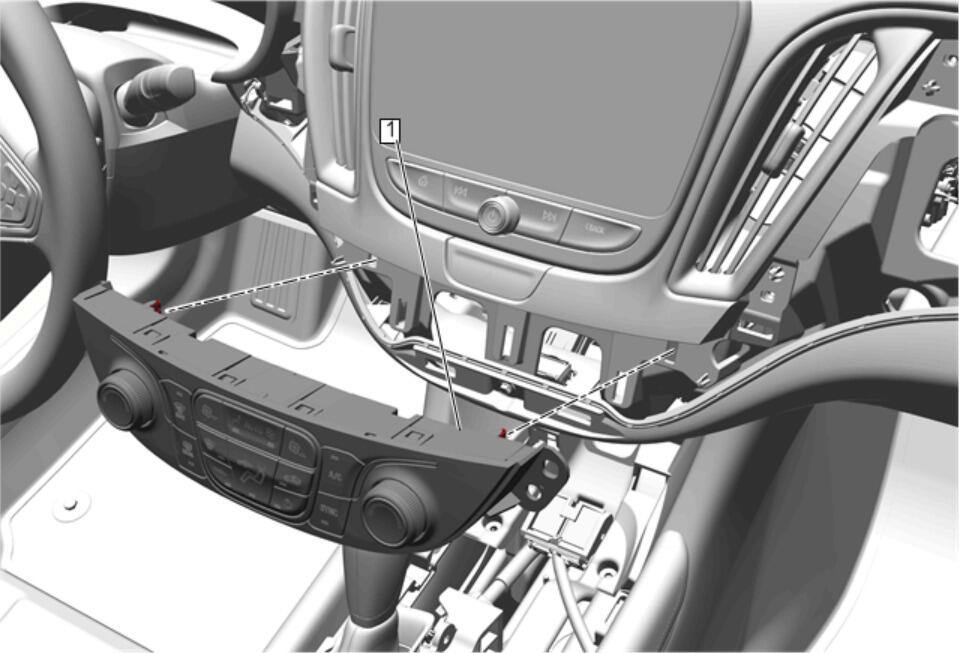

GM4215384Courtesy of GENERAL MOTORS COMPANY
Call out Component Name
Preliminary Procedure
Instrument Panel Center Trim Pad Replacement - Right Side
1 Heater and Air Conditioning User Interface Control
Procedure
Disconnect all electrical connectors.
