Heater and Air Conditioning User Interface Control Replacement (C4P)

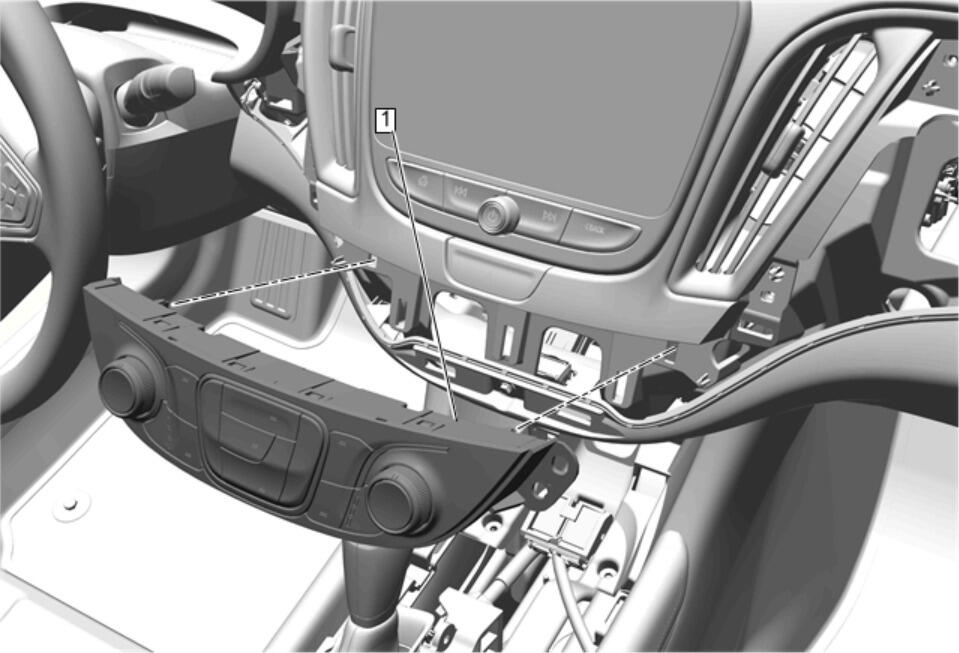

GM4215430Courtesy of GENERAL MOTORS COMPANY
Call out Component Name
Preliminary Procedure
Instrument Panel Center Trim Pad Replacement - Right Side
1 Heater and Air Conditioning User Interface Control
Procedure
Disconnect the electrical connector.
