Air Cleaner Inlet Duct Replacement

WARNING: This page is about a different variant/trim than selected.

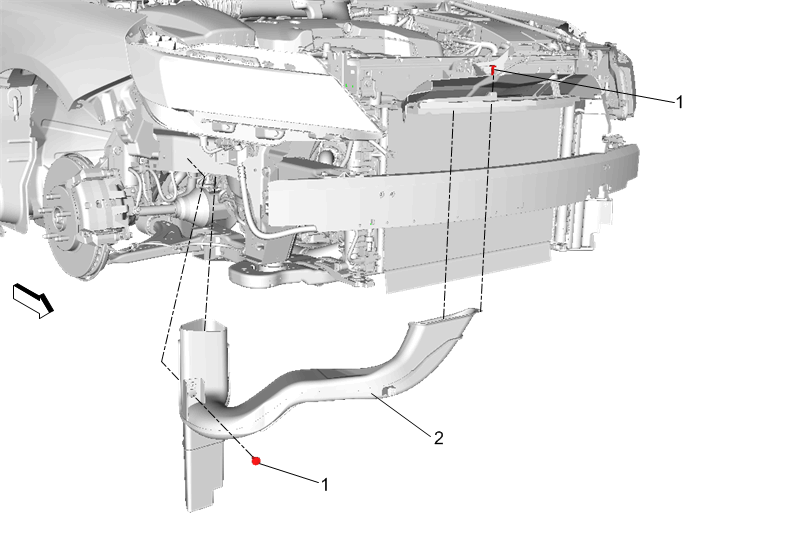

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Front Bumper Fascia Reinforcement Replacement - Right Side
1	Air Cleaner Inlet Duct Retainer [2x] CAUTION: Refer to Fastener Caution .
2	Air Cleaner Inlet Duct NOTE: Remove the front intake air duct and deflector together as an assembly. Separate after the assembly is removed from the vehicle. NOTE: Ensure that all duct(s) have been routed, installed and secured properly.

Callout

Component Name

Preliminary Procedures

Air Cleaner Inlet Duct Retainer [2x]

CAUTION:

Air Cleaner Inlet Duct

NOTE:

Remove the front intake air duct and deflector together as an assembly. Separate after the assembly is removed from the vehicle.

NOTE:

Ensure that all duct(s) have been routed, installed and secured properly.
