Front Bumper Fascia Replacement

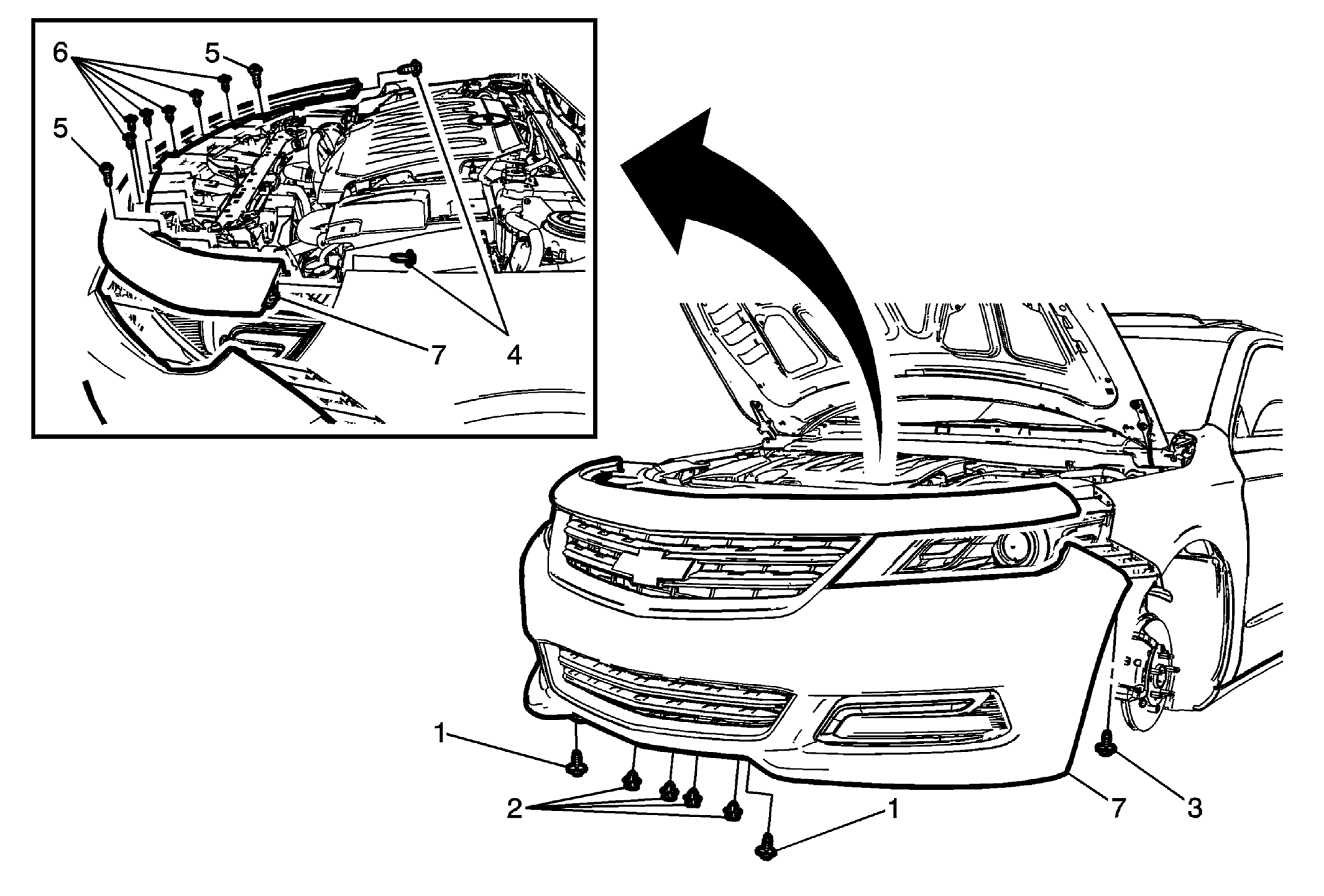

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
1	Front Bumper Fascia Lower Bolt (Qty 2) CAUTION: Refer to Fastener Caution .
2	Front Bumper Fascia Lower Push-In Retainer (Qty: 4)
3	Front Bumper Fascia Bolt (Qty: 2)
4	Front Bumper Fascia to Fender Outer Bolts (Qty: 2) NOTE: These bolts are accessed through the wheelhouse opening
5	Front Bumper Fascia Upper Bolts (Qty: 2)
6	Front Bumper Fascia Upper Screws (Qty 6)
7	Front Bumper Fascia Procedure Turn wheel inboard. Remove the four screw from the wheelhouse panel to front fascia. Reposition the wheelhouse liner down and away from the fascia bracket. Remove the front fascia to fender bolt (3). Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide. Disconnect any electrical connectors. Transfer components as necessary.
