Front Bumper Fascia Reinforcement Replacement - Right Side

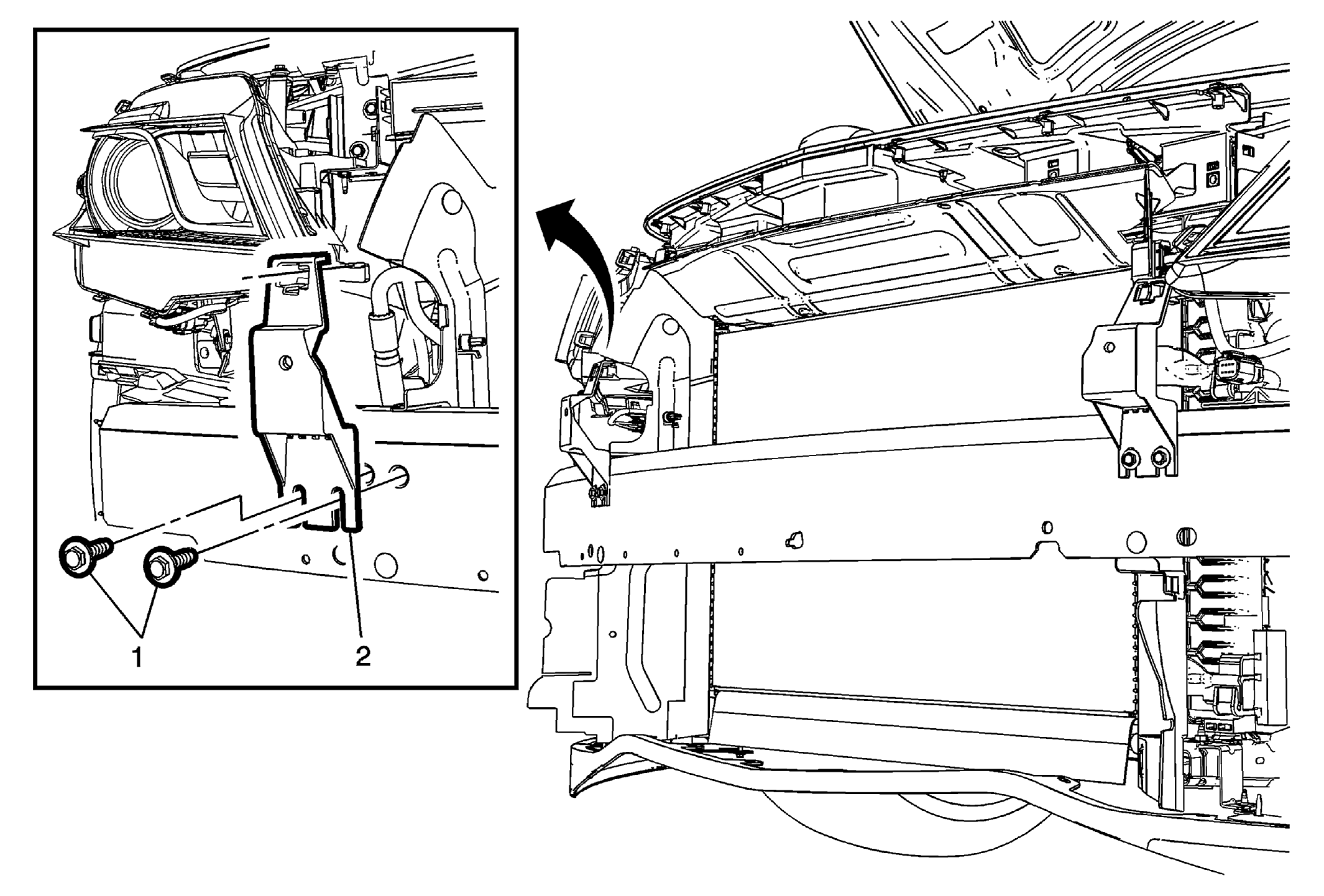

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the air inlet duct screw and duct from the bumper reinforcement, if equipped (LKW).
1	Front Bumper Fascia Reinforcement Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Bumper Fascia Reinforcement Right Side NOTE: When removing the reinforcement be careful not to damage the tab from the headlamp. This is only serviced with the headlamp.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the air inlet duct screw and duct from the bumper reinforcement, if equipped (LKW).

Front Bumper Fascia Reinforcement Bolt (Qty: 2)

CAUTION:

Front Bumper Fascia Reinforcement Right Side

NOTE:

When removing the reinforcement be careful not to damage the tab from the headlamp. This is only serviced with the headlamp.
