Engine Coolant Fan Replacement (LCV)

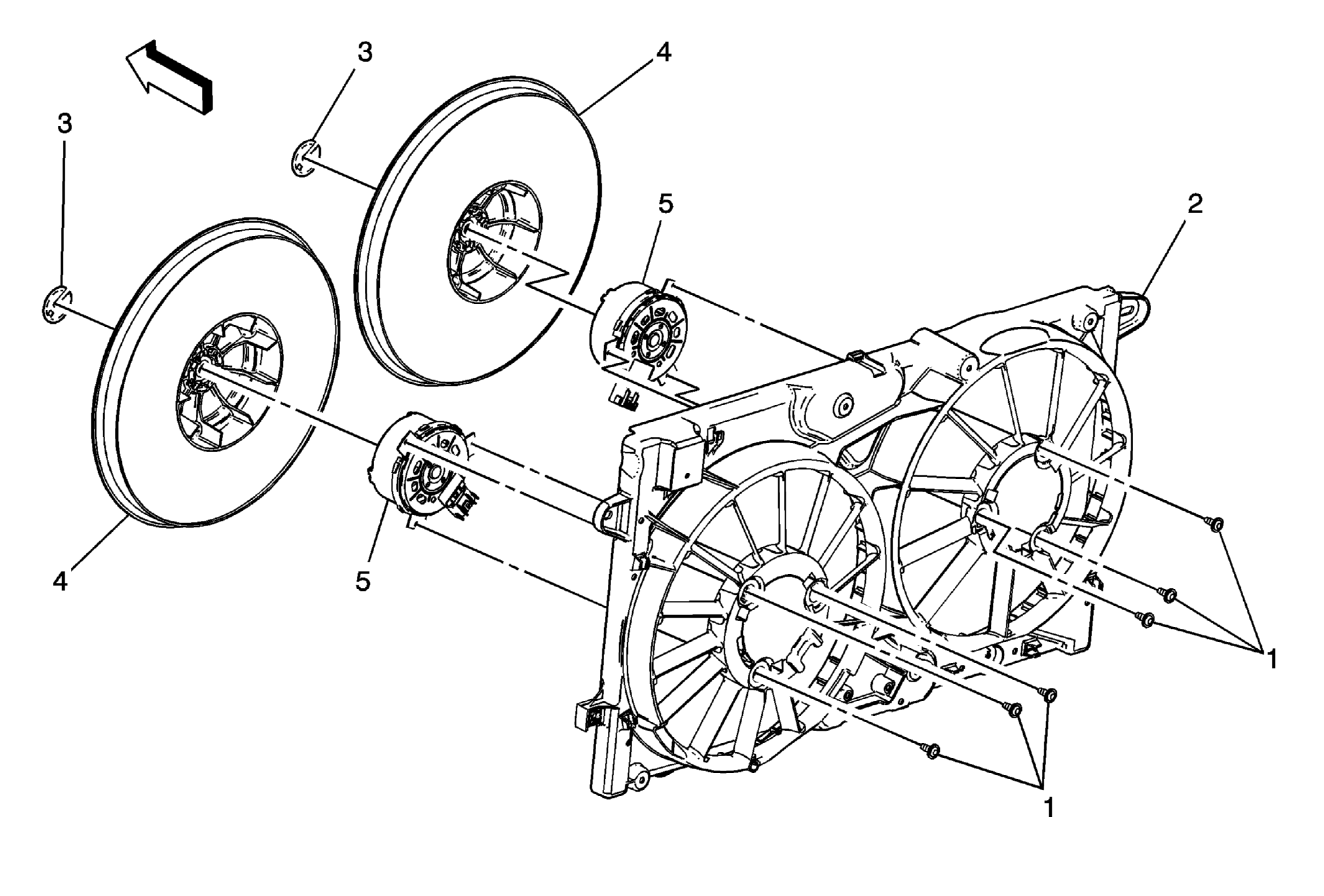

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine coolant fan shroud from the vehicle. Refer to Engine Coolant Fan Shroud Replacement (LFX) Engine Coolant Fan Shroud Replacement (LCV) . |
|
| 1 | Engine Coolant Fan Fastener (Qty: 6) (Qty: 3 Per Fan Assembly)
CAUTION:
Refer to Fastener Caution . |
| 2 | Engine Fan Shroud |
| 3 | Engine Coolant Fan Retainer (Qty: 2) |
| 4 | Engine Coolant Fan (Qty: 2) |
| 5 | Engine Coolant Fan Motor (Qty: 2) |
