Engine Coolant Fan Shroud Replacement (LCV)

Preliminary Procedures

1. Reposition the front end upper tie bar to gain access to the engine coolant fan shroud. Refer to Front End Upper Tie Bar Replacement .
2. Disconnect the engine coolant fan motor connectors.
3. Remove the electrical wiring harness from the engine coolant fan shroud and reposition out of the way.
4. Reposition the transmission fluid cooler pipes.

Procedures

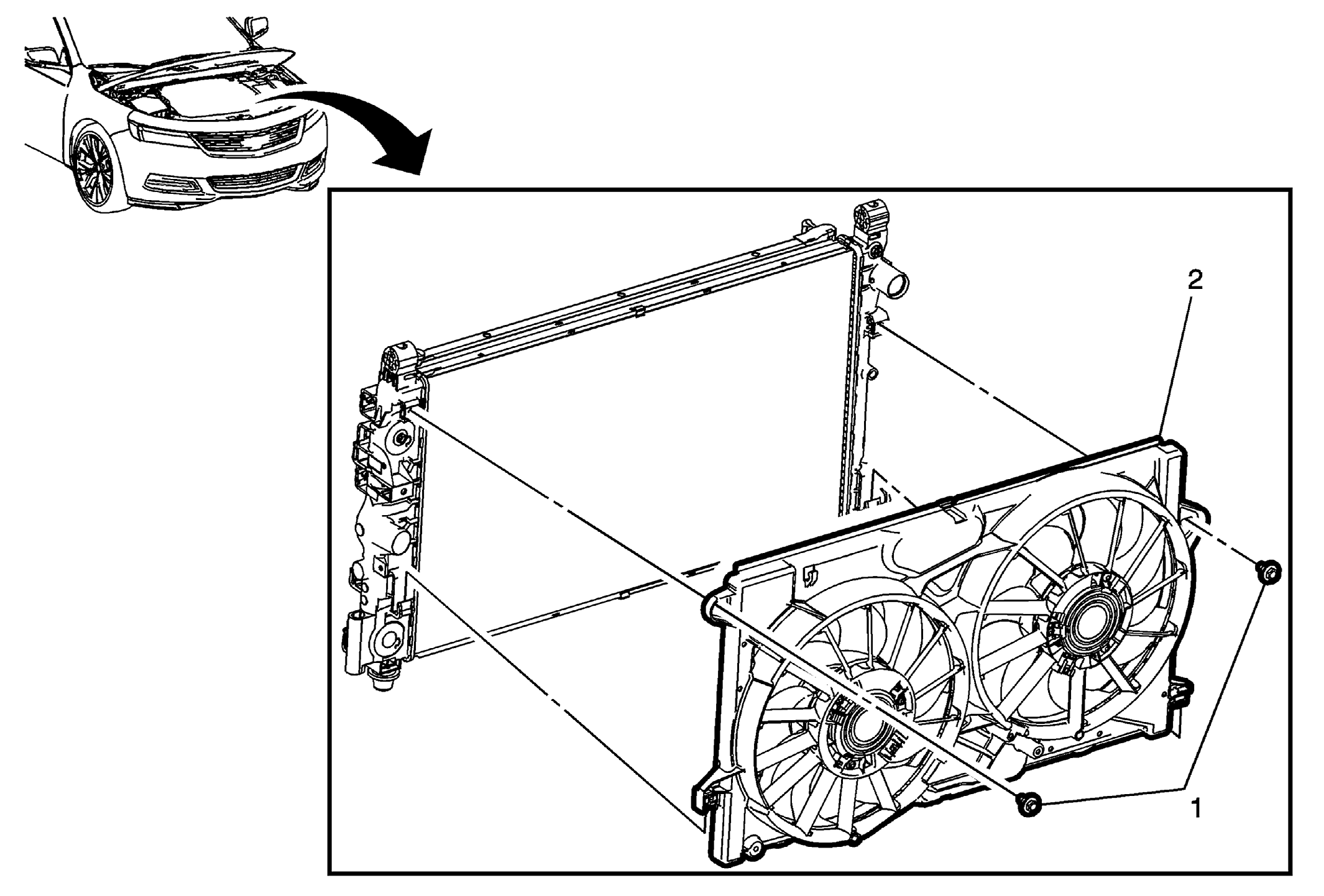

1. Remove the engine coolant fan shroud metal retaining clips from the radiator.
2. Transfer all necessary parts.
