Side Member Reinforcement Replacement (NJ2)

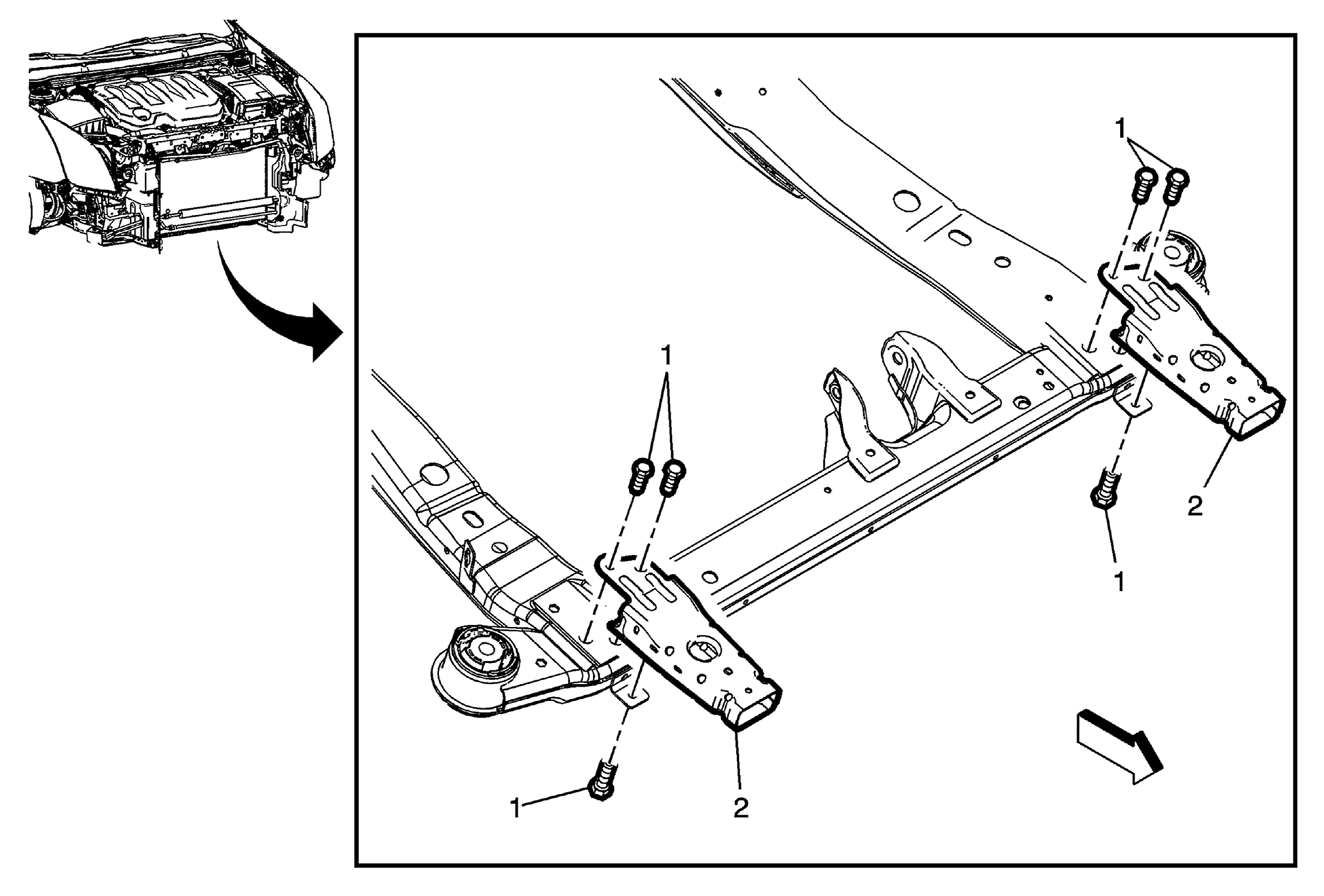

Callout	Component Name
Preliminary Procedures Remove the radiator air side baffle retainer from the side member reinforcement. Refer to Radiator Air Side Baffle and Deflector Replacement (Left)Radiator Air Side Baffle and Deflector Replacement (Right) . Support the radiator.
1	Side Member Reinforcement Fastener (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Side Member Reinforcement (Qty: 2)

Callout

Component Name

Preliminary Procedures

Side Member Reinforcement Fastener (Qty: 6)

CAUTION:

Tighten
22 N.m (16 lb ft)

Side Member Reinforcement (Qty: 2)
