Radiator Air Side Baffle and Deflector Replacement (Right)

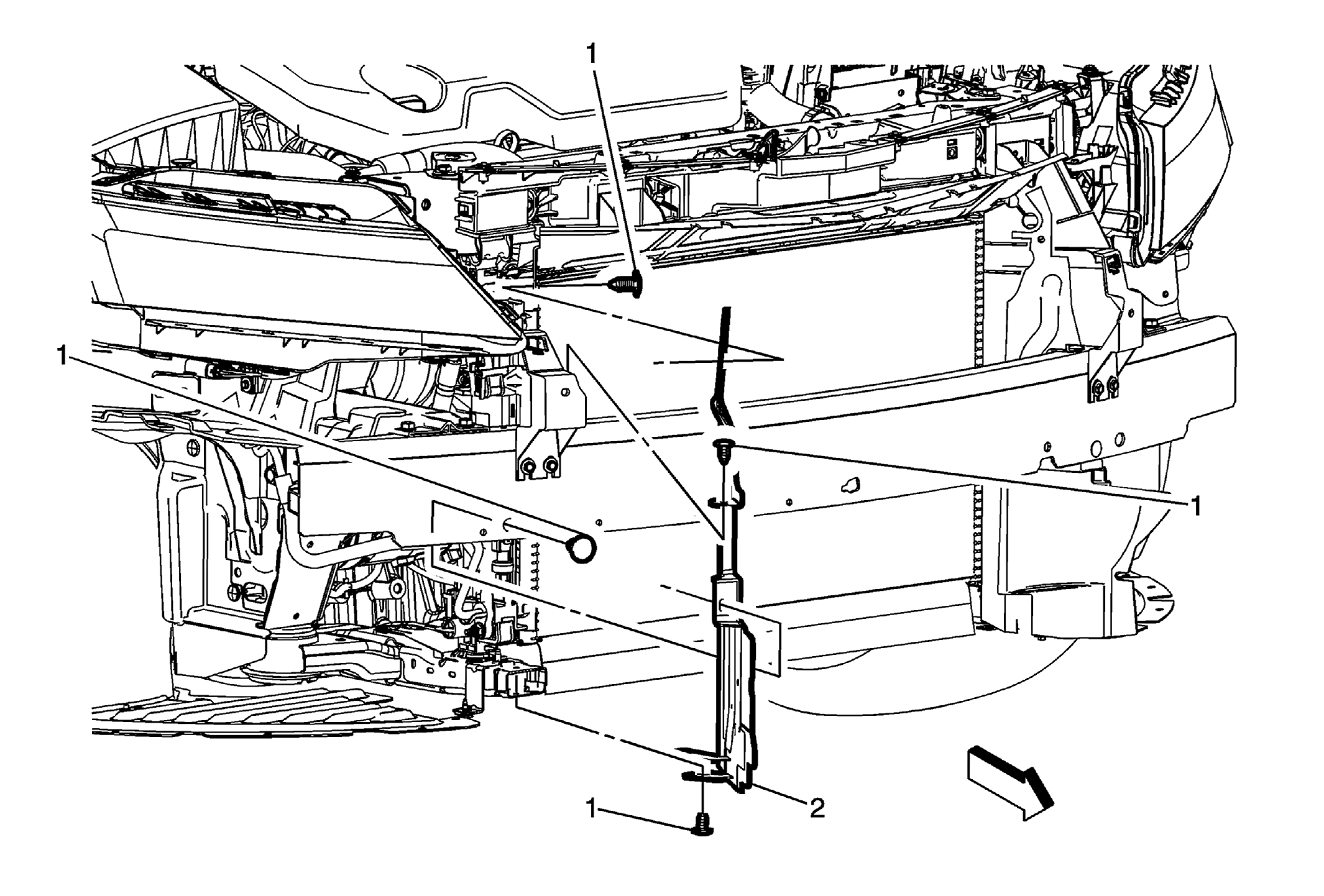

GM2911725
Callout Component Name
Preliminary Procedures
Remove the right side front bumper fascia reinforcement. Refer to Front Bumper Fascia Reinforcement Replacement - Right Side .
1 Radiator Air Side Baffle and Deflector Retainer (Qty: 4)
2 Radiator Air Side Baffle and Deflector
