Radiator Air Side Baffle and Deflector Replacement (Left)

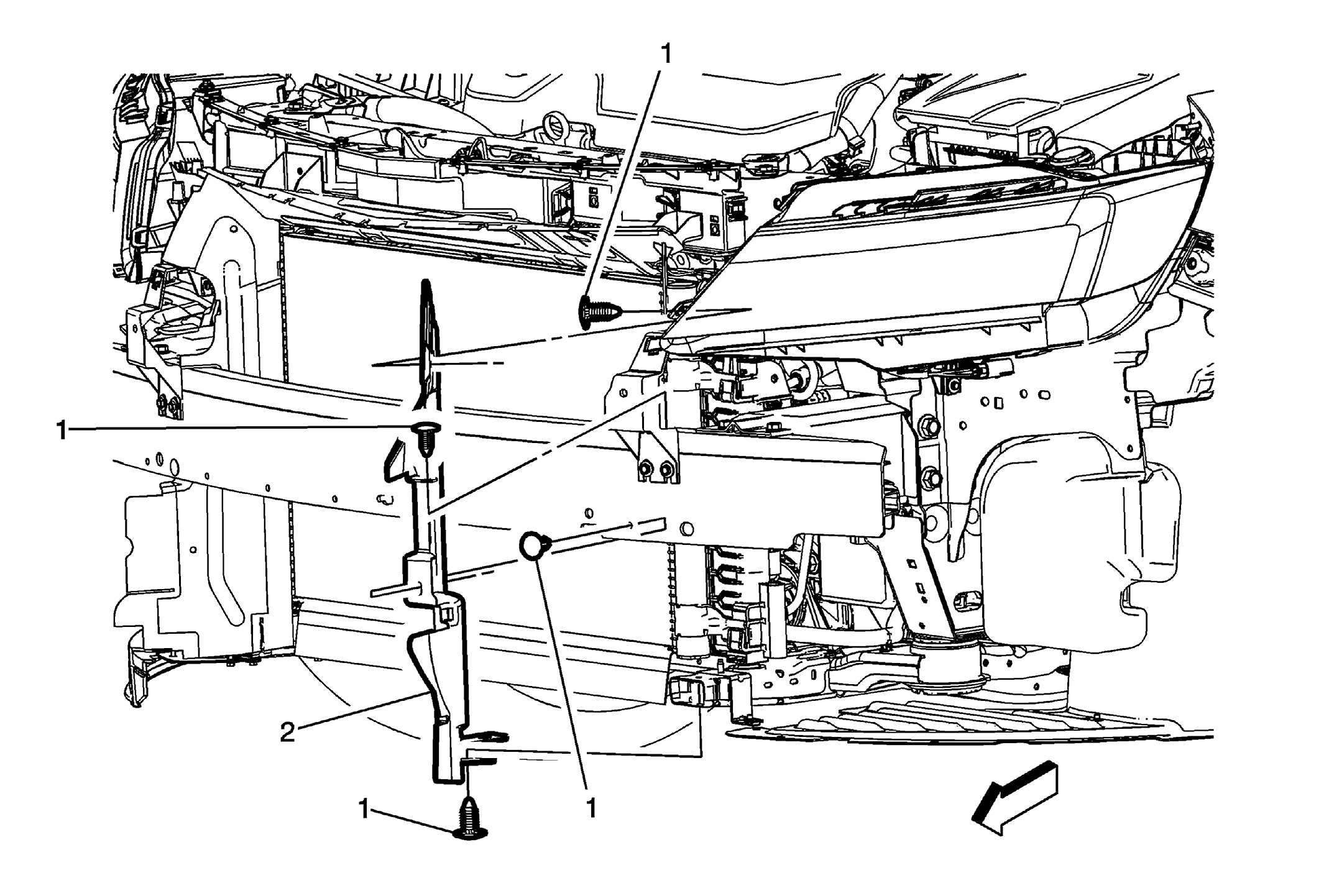

GM2911724
Callout Component Name
Preliminary Procedures
Remove the left side front bumper fascia reinforcement. Refer to Front Bumper Fascia Reinforcement Replacement - Left Side .
1 Radiator Air Side Baffle and Deflector Retainer (Qty: 4)
2 Radiator Air Side Baffle and Deflector
