Rear Compartment Lid Replacement

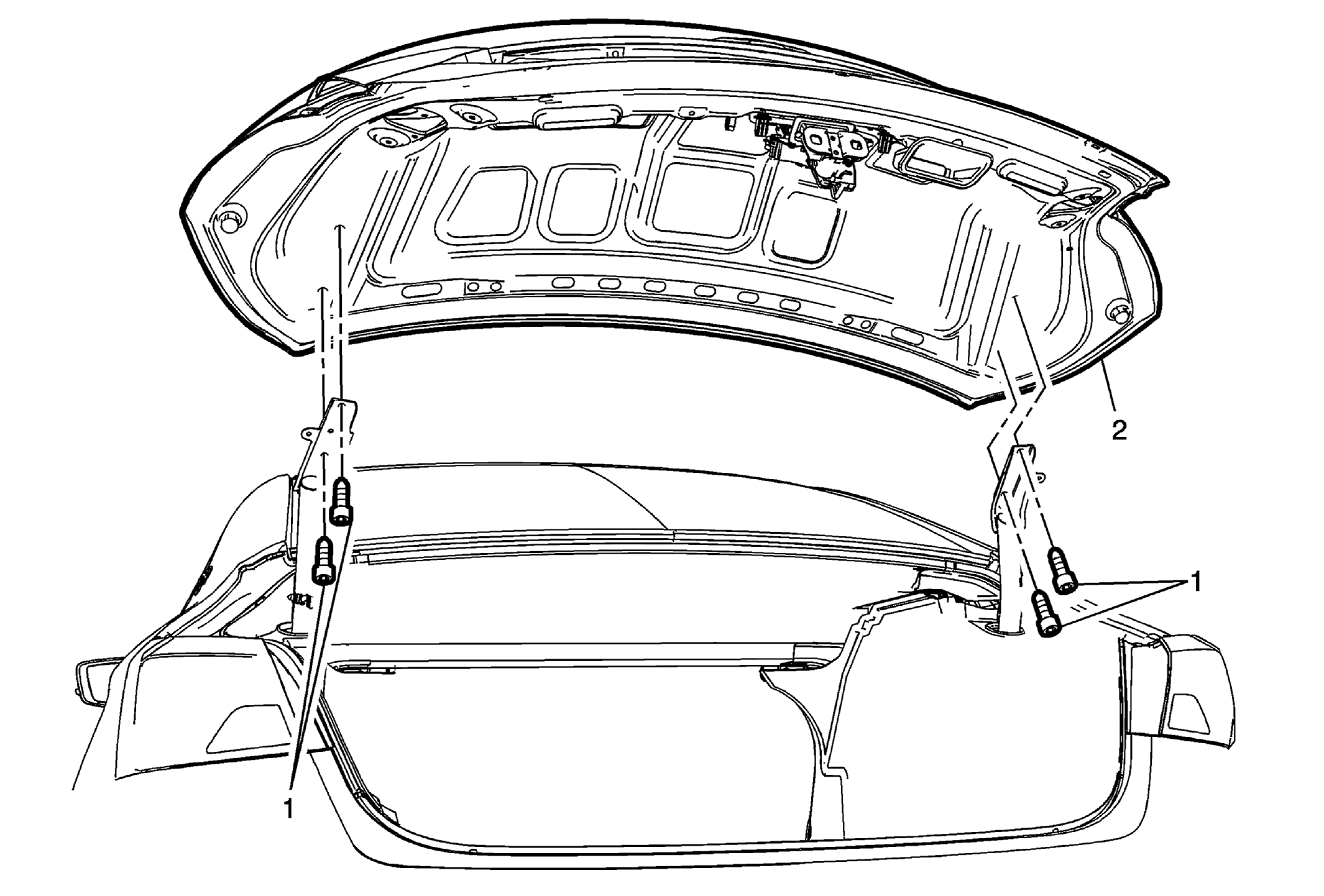

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Compartment Lid Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Rear Compartment Lid Procedure Disconnect the electrical connector. Remove the rear compartment lid with the aid of an assistant. Transfer components as necessary. Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Compartment Lid Bolt (Qty: 4)

CAUTION:

Tighten
22 N.m (16 lb ft)

Rear Compartment Lid

Procedure

Disconnect the electrical connector.
Remove the rear compartment lid with the aid of an assistant.
Transfer components as necessary.
Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment
