Rear Compartment Lid Inner Panel Trim Replacement

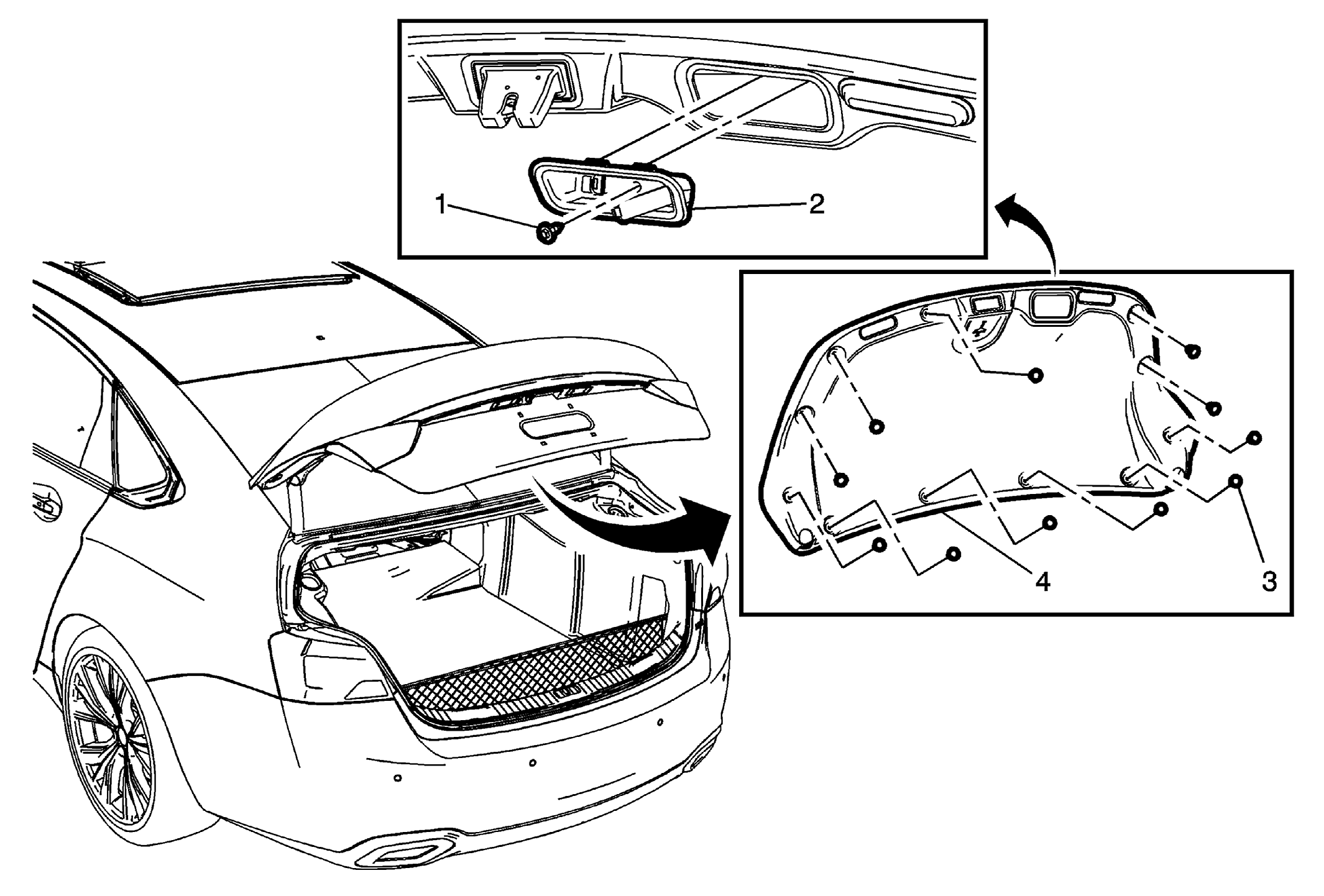

Callout	Component Name
Preliminary Procedure Remove rear compartment lid latch cover. Refer to Rear Compartment Lid Latch Cover Replacement .
1	Rear Compartment Lid Inside Handle Fastener CAUTION: Refer to Fastener Caution . Procedure Use a small flat-bladed tool to open integral cover to access fastener. Use a small flat-bladed tool to pull and release then slide the rear compartment lid outer bumpers outward to remove.
2	Rear Compartment Lid Inside Handle Assembly
3	Rear Compartment Lid Inner Panel Trim Retainer (Qty: 11)
4	Rear Compartment Lid Inner Panel Trim Assembly Procedure Release the retainers located on each side at the rear compartment lid hinges.
