Rear Compartment Lid Adjustment

Procedure

1. Loosen the rear compartment lid hinge bolt (Qty: 4) to adjust the rear compartment lid.
2. Loosen the rear compartment lid striker bolts (Qty: 2) to adjust the rear compartment lid.
3. Adjust the rear compartment lid in order to obtain an even gap between the rear compartment lid and the quarter outer panel, the rear lamp and the rear bumper fascia and so that the rear compartment lid is flush with the quarter outer panel, the rear lamp and the rear bumper fascia.

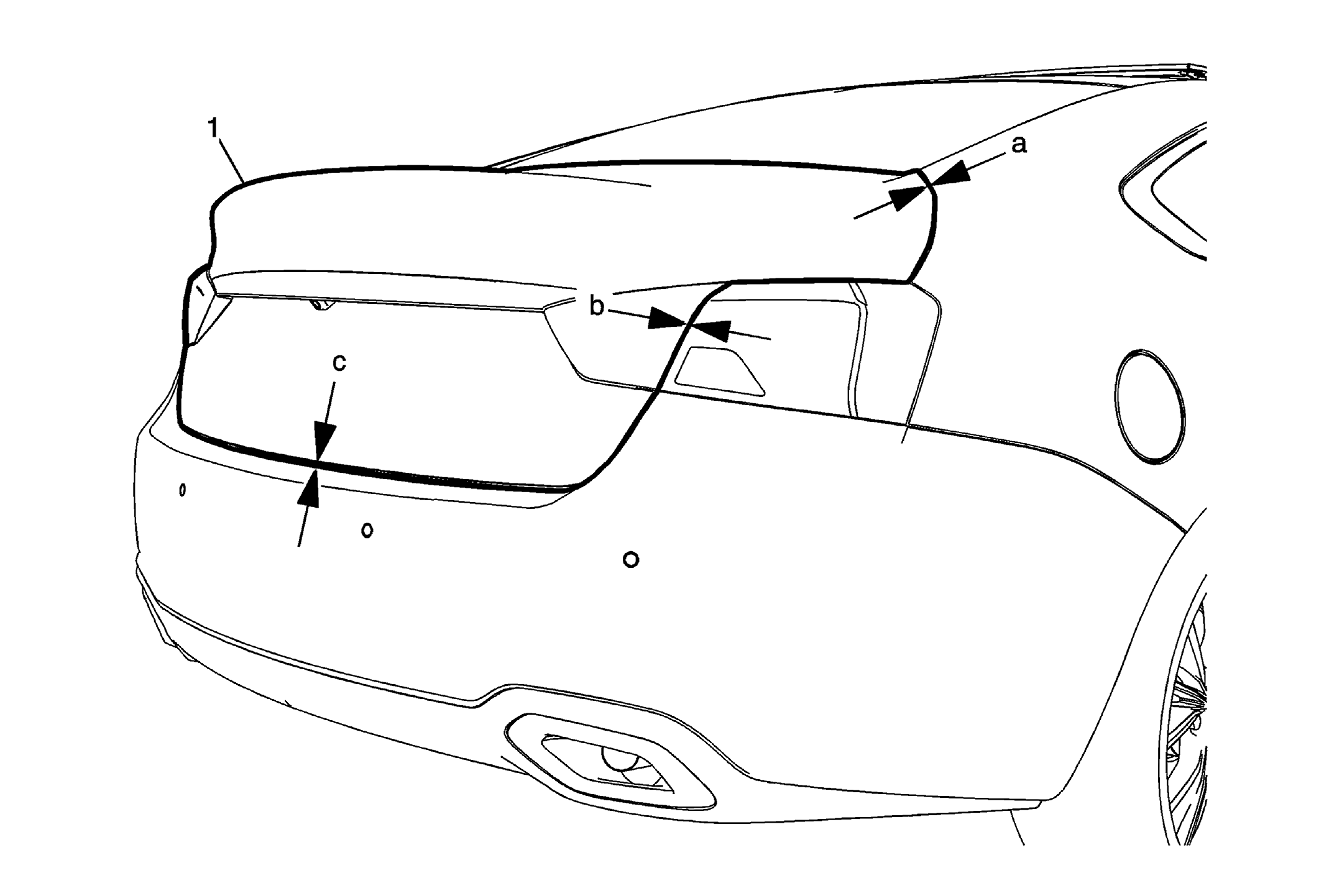

Adjustment

• Rear compartment lid to quarter outer panel (a) 3.5 mm ± 0.75 mm (0.13 in ± 0.03 in)
• Rear compartment lid lamp to tail lamp (b) 4.0 mm ± 1.5 mm (0.16 in ± 0.06 in)
• Rear compartment lid to rear bumper fascia (c) 5.5 mm ± 1.5 mm (0.22 in ± 0.06 in)
