Installation Procedure

WARNING: This page is about a different variant/trim than selected.

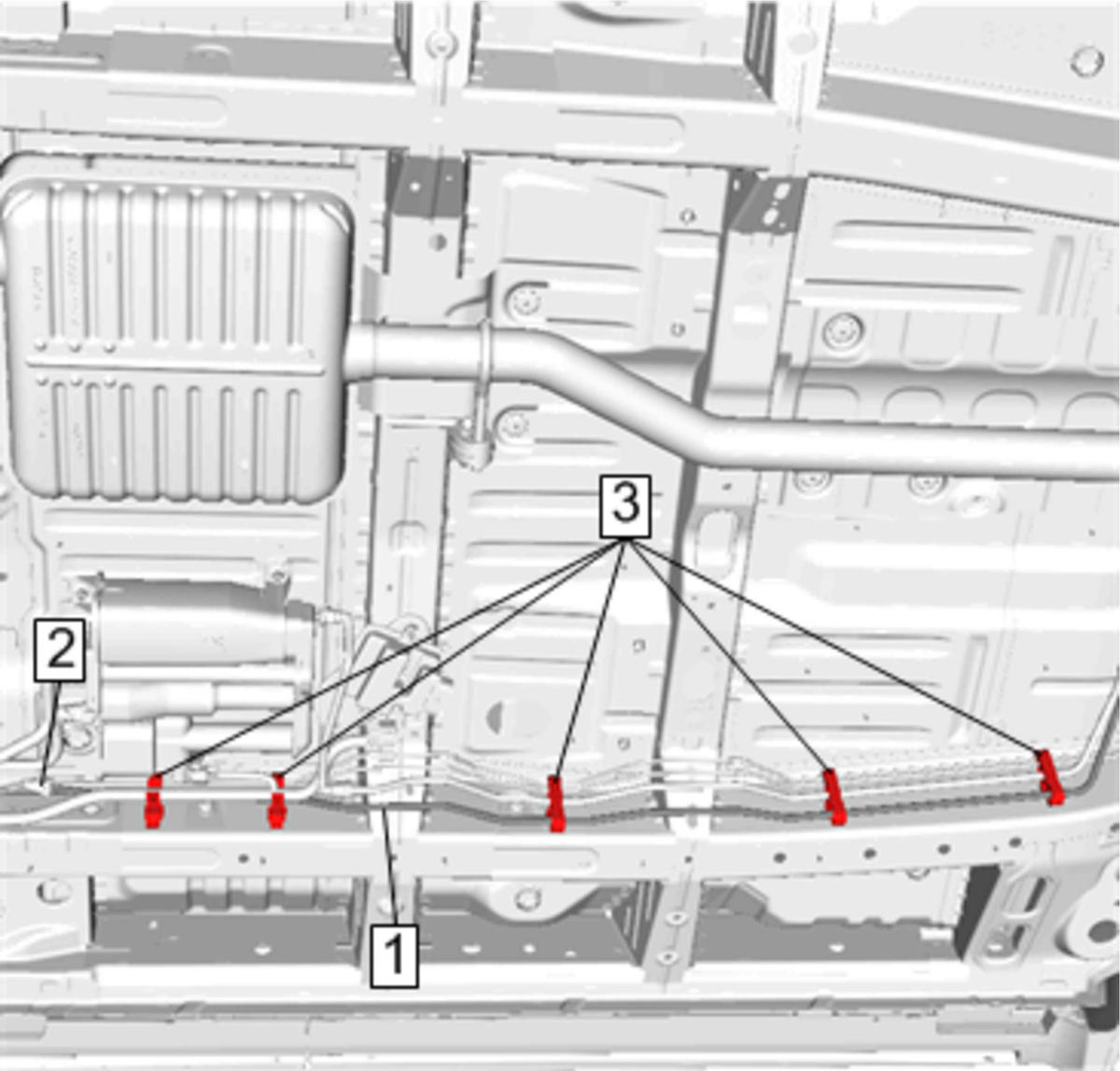

    Fig 1: Fuel Feed Pipe And Fuel Pump Fuel Feed Hose
    GM4598966Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Feed Pipe (1) @ Retainer (3) - [5x]
  2. Fuel Feed Pipe (1) @ Fuel Pump Fuel Feed Hose (2) - Plastic Collar Quick Connect Fitting Service
  3. Install Underbody Rear Air Deflector - Underbody Rear Air Deflector Replacement (Front Wheel Drive)Underbody Rear Air Deflector Replacement (Diesel)

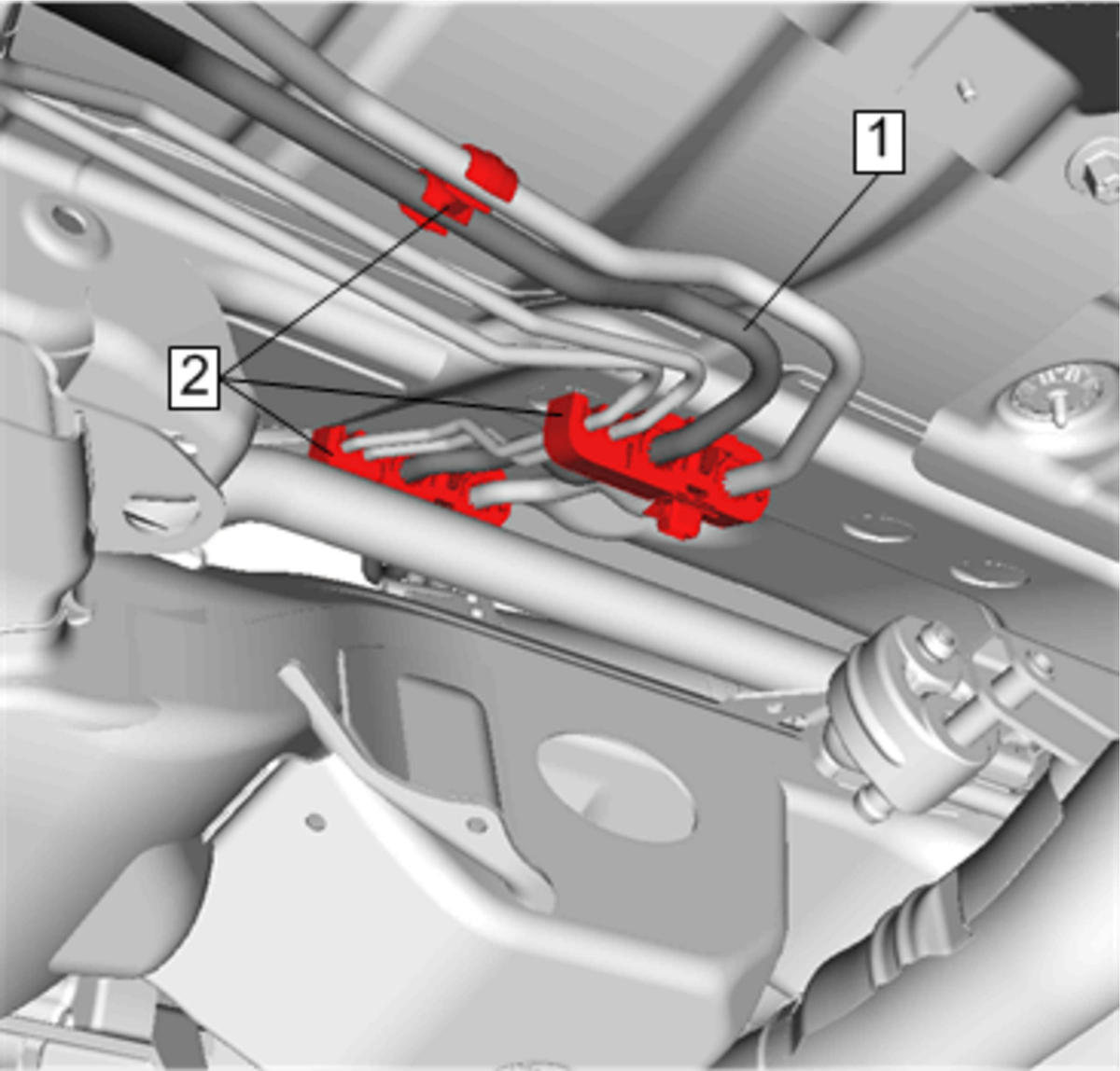

    4. Fig 2: Fuel Feed Pipe And Retainer
    GM4598964Courtesy of GENERAL MOTORS COMPANY
  4. Install Fuel Feed Pipe (1) @ Retainer (2) - [3x]

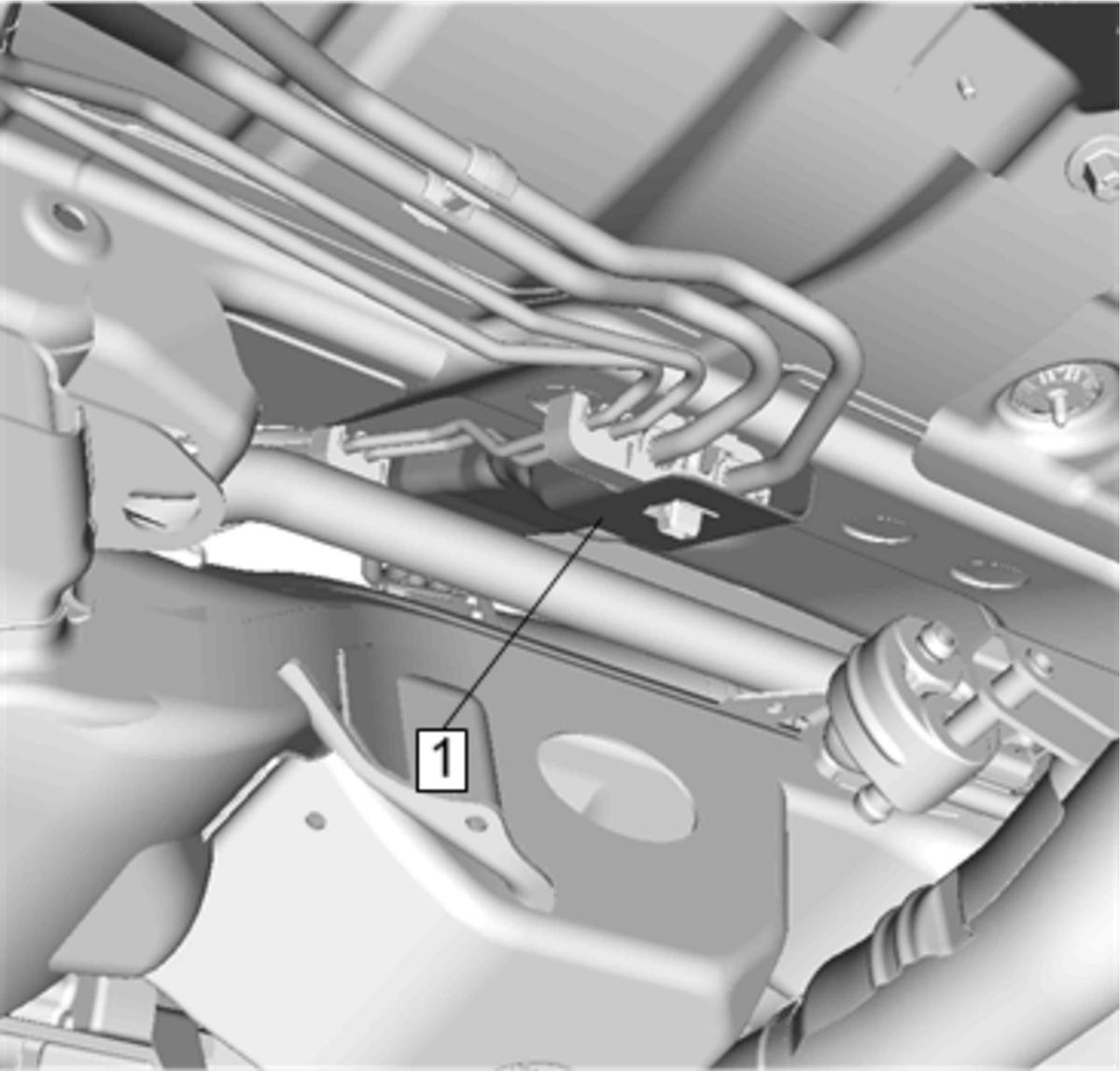

    5. Fig 3: Shield
    GM4598960Courtesy of GENERAL MOTORS COMPANY
  5. Install Shield (1)
  6. Lower the vehicle.

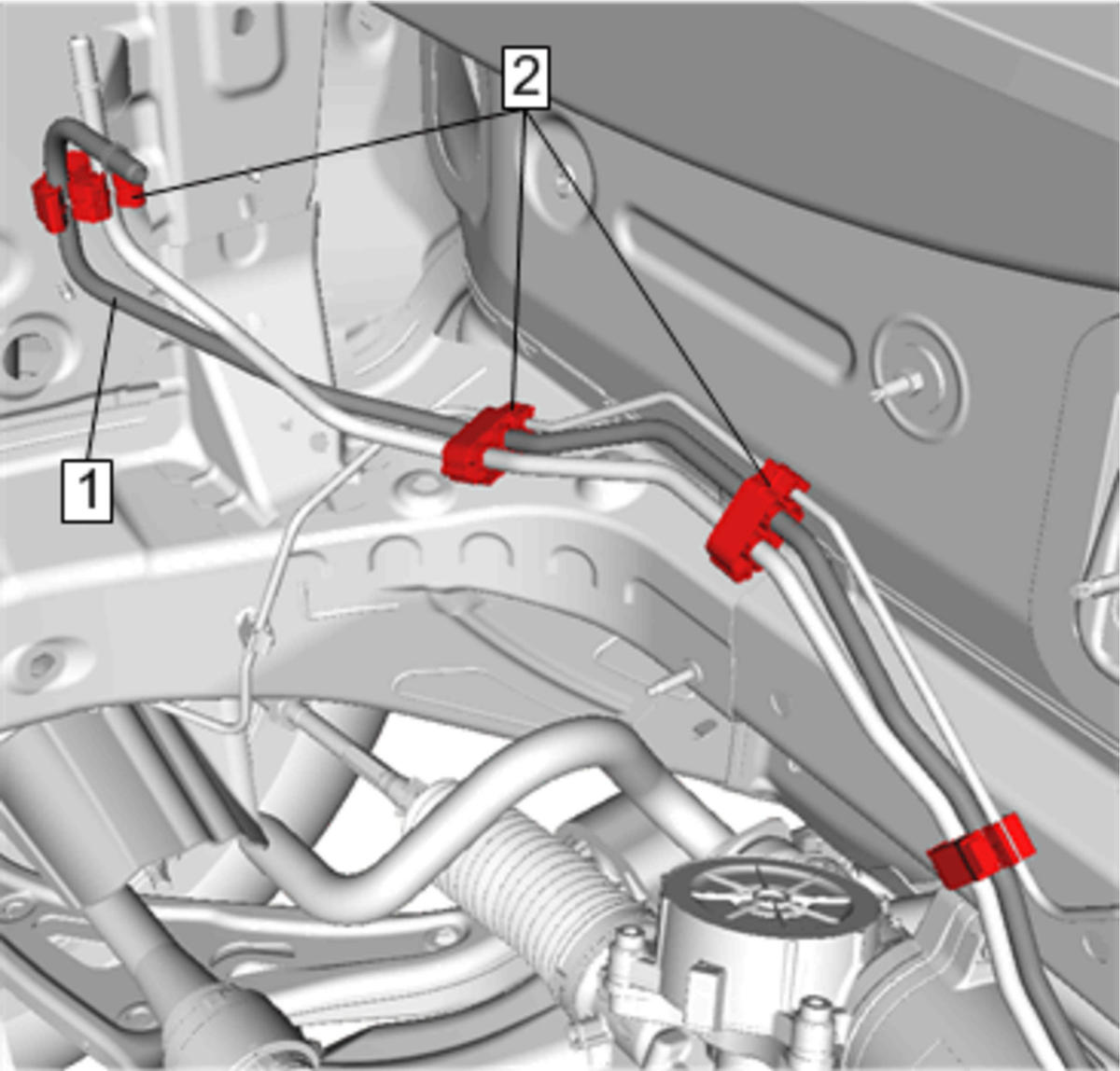

    7. Fig 4: Fuel Feed Pipe And Retainer
    GM4598958Courtesy of GENERAL MOTORS COMPANY
  7. Install Fuel Feed Pipe (1) @ Retainer (2) - [4x]
  8. Connect Fuel Feed Front Pipe - Fuel Feed Front Pipe Replacement
  9. Pressurize fuel system and check for fuel leaks.
