Underbody Rear Air Deflector Replacement (Diesel)

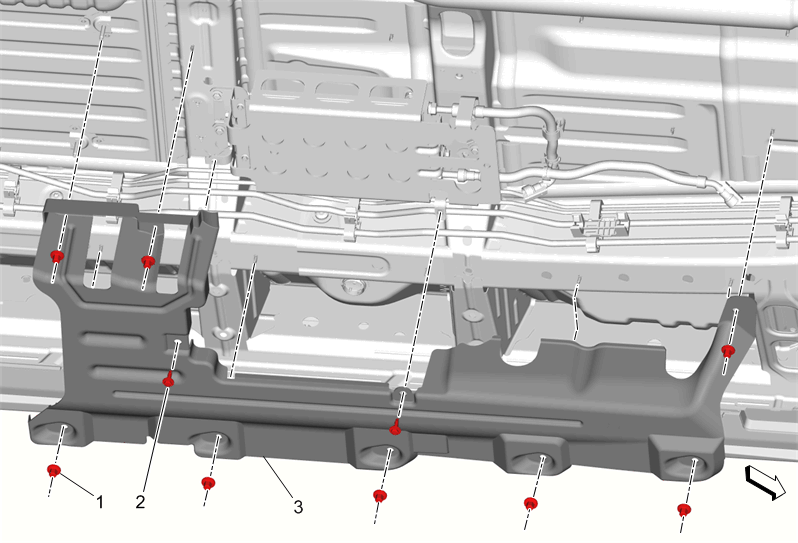

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Underbody Rear Air Deflector Nut [8x]
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Underbody Rear Air Deflector Bolt [2x] Tighten 5 N.m (44 lb in) |
| 3 | Underbody Rear Air Deflector Procedure Remove the support and lower the vehicle. Refer to Lifting and Jacking the Vehicle |
